kubekey内网环境离线推送至自建harbor仓库报错

Ppanghu · 19 3月

创建部署问题时，请参考下面模板，你提供的信息越多，越容易及时获得解答。如果未按模板创建问题，管理员有权关闭问题。
确保帖子格式清晰易读，用 markdown code block 语法格式化代码块。
你只花一分钟创建的问题，不能指望别人花上半个小时给你解答。

操作系统信息
例如：虚拟机，Centos7.9，4C/8G

Kubernetes版本信息
1.30.6

容器运行时
Docker version 24.0.9

KubeSphere版本信息
例如：v3.1.7。离线安装。使用kk安装。

问题是什么
将制品推送镜像至通过kk部署的harbor仓库显示报错。

以下是我的config-sample.yaml具体配置

apiVersion: kubekey.kubesphere.io/v1alpha2

kind: Cluster

metadata:

name: sample

spec:

hosts:

{name: node1, address: 192.168.100.10, internalAddress: 192.168.100.10, user: root, password: “123456”}
{name: node2, address: 192.168.100.20, internalAddress: 192.168.100.20, user: root, password: “123456”}
{name: node3, address: 192.168.100.30, internalAddress: 192.168.100.30, user: root, password: “123456”}

roleGroups:

etcd:
- node1
- node2
- node3

  control-plane:
- node1
- node2
- node3

  worker:
- node1
- node2
- node3

  registry:
- node1
controlPlaneEndpoint:

Internal loadbalancer for apiservers

internalLoadbalancer: haproxy

domain: lb.kubesphere.local

address: ""

port: 6443

kubernetes:

version: v1.30.6

clusterName: cluster.local

autoRenewCerts: true

containerManager: containerd

etcd:

type: kubekey

network:

plugin: calico

kubePodsCIDR: 10.233.64.0/18

kubeServiceCIDR: 10.233.0.0/18

multus support. https://github.com/k8snetworkplumbingwg/multus-cni

multusCNI:

enabled: false

storage:

openebs:
```
basePath: /data/openebs/local
```

registry:

type: harbor

  certCommonName: dockerhub.kubekey.local

auths:

  "dockerhub.kubekey.local":

    username: admin

    password: Harbor12345

    skipTLSVerify: true

    certsPath: "/etc/docker/certs.d/dockerhub.kubekey.local"

privateRegistry: "dockerhub.kubekey.local"

namespaceOverride: "kubesphereio"

registryMirrors: []

insecureRegistries: []

addons: []

请问是什么问题？我已经通过 ./kk init registry -f config-sample.yaml -a 命令自建好harbor仓库，推送镜像至本地总是报错。麻烦大佬看看什么问题。

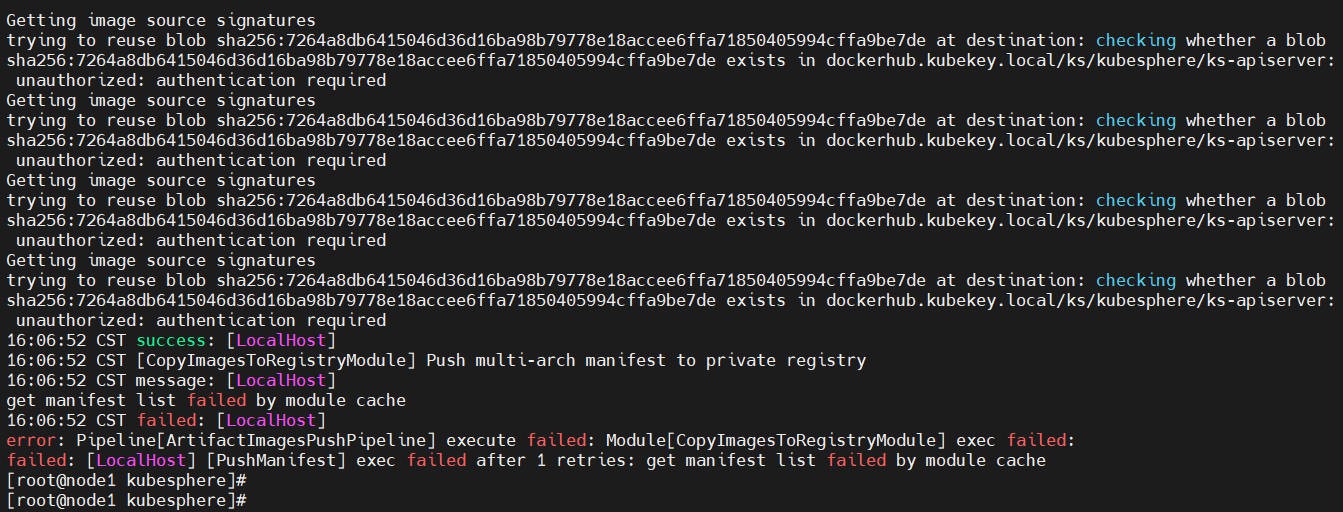

16:06:52 CST success: [LocalHost]

16:06:52 CST [CopyImagesToRegistryModule] Push multi-arch manifest to private registry

16:06:52 CST message: [LocalHost]

get manifest list failed by module cache

16:06:52 CST failed: [LocalHost]

error: Pipeline[ArtifactImagesPushPipeline] execute failed: Module[CopyImagesToRegistryModule] exec failed:

failed: [LocalHost] [PushManifest] exec failed after 1 retries: get manifest list failed by module cache
