- 已编辑
操作系统信息
云服务器，Centos8，4C/8G
Kubernetes版本信息
Client Version: v1.30.6
Kustomize Version: v5.0.4-0.20230601165947-6ce0bf390ce3
Server Version: v1.30.6
容器运行时
Version: 0.1.0
RuntimeName: containerd
RuntimeVersion: v1.7.13
RuntimeApiVersion: v1
KubeSphere版本信息
v4.1.2

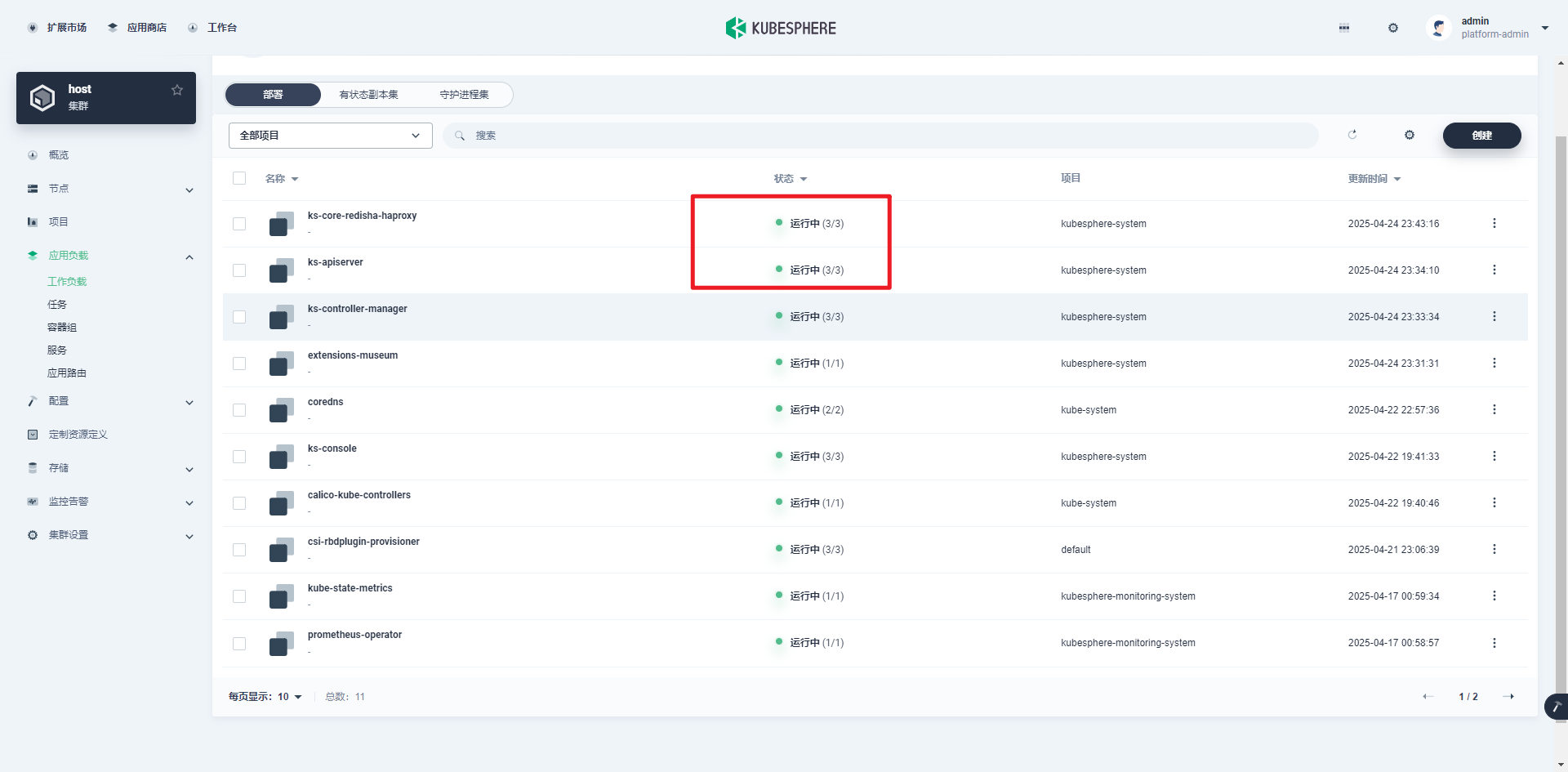

希望搭建Kubesphere网页的高可用，为ks-apiserver增加多副本，但如果将ks-apiserver的副本数量调整为2个或者更多时，由于没有使用redis作为ks-apiserver鉴权数据库，当在网页上键入用户名和密码后，无法登录系统。但在kubesphere-system的name space中搭建redis后，无法使用redis作为ks-apiserver存储登录信息的内存数据库，应该如何解决？
ks-apiserver的yaml内容如下：
kind: Deployment
apiVersion: apps/v1
metadata:
name: ks-apiserver
namespace: kubesphere-system
labels:
app: ks-apiserver
app.kubernetes.io/managed-by: Helm
tier: backend
version: v4.1.2
annotations:
deployment.kubernetes.io/revision: '28'
meta.helm.sh/release-name: ks-core
meta.helm.sh/release-namespace: kubesphere-system
spec:
replicas: 1
selector:
matchLabels:
app: ks-apiserver
tier: backend
template:
metadata:
creationTimestamp: null
labels:
app: ks-apiserver
tier: backend
annotations:
checksum/config: 5056df120376721279cd723870ab5f7683b736412056e9c5d98b35e04455f08d
kubectl.kubernetes.io/restartedAt: '2025-04-24T00:16:59+08:00'
kubesphere.io/imagepullsecrets: '{}'
kubesphere.io/restartedAt: '2025-04-23T16:12:30.490Z'
spec:
volumes:
- name: kubesphere-config
configMap:
name: kubesphere-config
defaultMode: 420
- name: host-time
hostPath:
path: /etc/localtime
type: ''
containers:
- name: ks-apiserver
image: >-
swr.cn-southwest-2.myhuaweicloud.com/ks/kubesphere/ks-apiserver:v4.1.2
command:
- ks-apiserver
- '--logtostderr=true'
ports:
- name: http-0
containerPort: 9090
protocol: TCP
env:
- name: REDIS_HOST
value: redis.kubesphere-system.svc.cluster.local
- name: REDIS_PORT
value: '6379'
resources:
limits:
cpu: '1'
memory: 1Gi
requests:
cpu: 20m
memory: 100Mi
volumeMounts:
- name: kubesphere-config
mountPath: /etc/kubesphere/
- name: host-time
readOnly: true
mountPath: /etc/localtime
livenessProbe:
httpGet:
path: /version
port: 9090
scheme: HTTP
initialDelaySeconds: 15
timeoutSeconds: 15
periodSeconds: 10
successThreshold: 1
failureThreshold: 8
terminationMessagePath: /dev/termination-log
terminationMessagePolicy: File
imagePullPolicy: IfNotPresent
restartPolicy: Always
terminationGracePeriodSeconds: 30
dnsPolicy: ClusterFirst
serviceAccountName: kubesphere
serviceAccount: kubesphere
securityContext: {}
affinity:
nodeAffinity:
preferredDuringSchedulingIgnoredDuringExecution:
- weight: 100
preference:
matchExpressions:
- key: node-role.kubernetes.io/control-plane
operator: In
values:
- ''
podAntiAffinity:
preferredDuringSchedulingIgnoredDuringExecution:
- weight: 100
podAffinityTerm:
labelSelector:
matchLabels:
app: ks-apiserver
namespaces:
- kubesphere-system
topologyKey: kubernetes.io/hostname
schedulerName: default-scheduler
tolerations:
- key: node-role.kubernetes.io/master
effect: NoSchedule
- key: node-role.kubernetes.io/control-plane
effect: NoSchedule
- key: CriticalAddonsOnly
operator: Exists
strategy:
type: RollingUpdate
rollingUpdate:
maxUnavailable: 0
maxSurge: 1
revisionHistoryLimit: 10
progressDeadlineSeconds: 600
kubesphere-config的config map内容如下：
redis:
host: redis.kubesphere-system.svc.cluster.local
port: 6379
authentication:
authenticateRateLimiterMaxTries: 10
authenticateRateLimiterDuration: 10m0s
loginHistoryRetentionPeriod: 168h
multipleLogin: true
issuer:
url: "http://ks-console.kubesphere-system.svc:30880"
jwtSecret: "NOw582XJjdJ7foaAfasHf3urle9IjNFI"
maximumClockSkew: 10s
accessTokenMaxAge: 2h
accessTokenInactivityTimeout: 30m
s3:
endpoint: ""
region: us-east-1
disableSSL: true
forcePathStyle: true
accessKeyID: admin
secretAccessKey: admin
bucket: uploads
multicluster:
clusterRole: "host"
hostClusterName: "host"
terminal:
kubectl:
image: swr.cn-southwest-2.myhuaweicloud.com/ks/kubesphere/kubectl:v1.27.16
node:
image: swr.cn-southwest-2.myhuaweicloud.com/ks/kubesphere/kubectl:v1.27.16
uploadFileLimit: 100Mi
helmExecutor:
image: swr.cn-southwest-2.myhuaweicloud.com/ks/kubesphere/kubectl:v1.27.16
timeout: 10m
historyMax: 2
jobTTLAfterFinished: 0s
resources:
limits:
cpu: 500m
memory: 500Mi
requests:
cpu: 100m
memory: 100Mi
extension:
imageRegistry: "swr.cn-southwest-2.myhuaweicloud.com/ks"
experimental:
validationDirective: ""
composedApp:
appSelector: ""
kubesphere:
tls: false
telemetry:
ksCloudURL: "https://kubesphere.cloud"
auditing:
auditLevel: Metadata
enable: false
logOptions:
maxAge: 7
maxBackups: 10
maxSize: 100
path: /etc/audit/audit.log
