etcd黄色标志，是不是代表没有起来。应该如何处理

Yyay · 19 5月

kubernetes v1.22.12 –with-kubesphere v3.4.1。kk在线安装的。

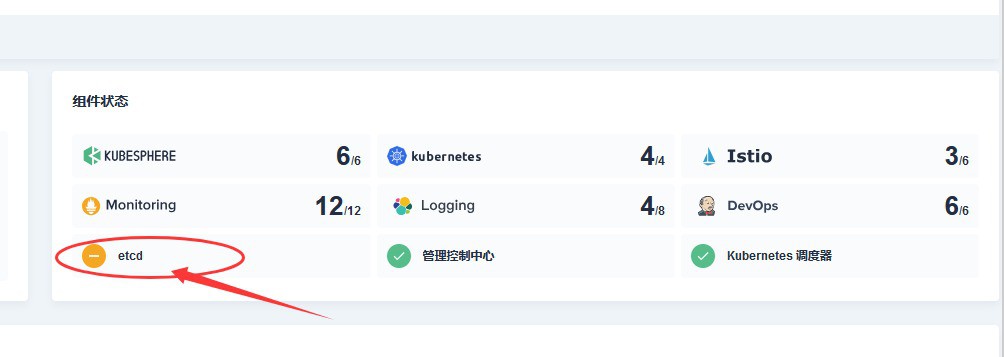

在监控告警里面，集群状态。

etcd黄色标志，是不是代表有异常。

应该如何排查和处理，谢谢。

Yyay · 19 5月

yay

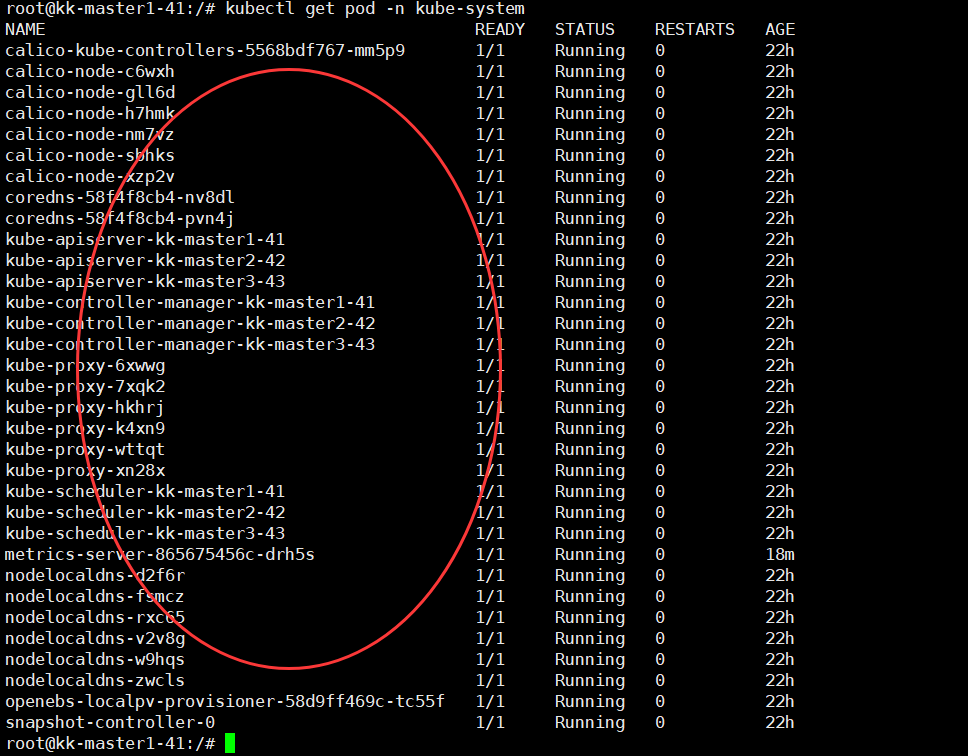

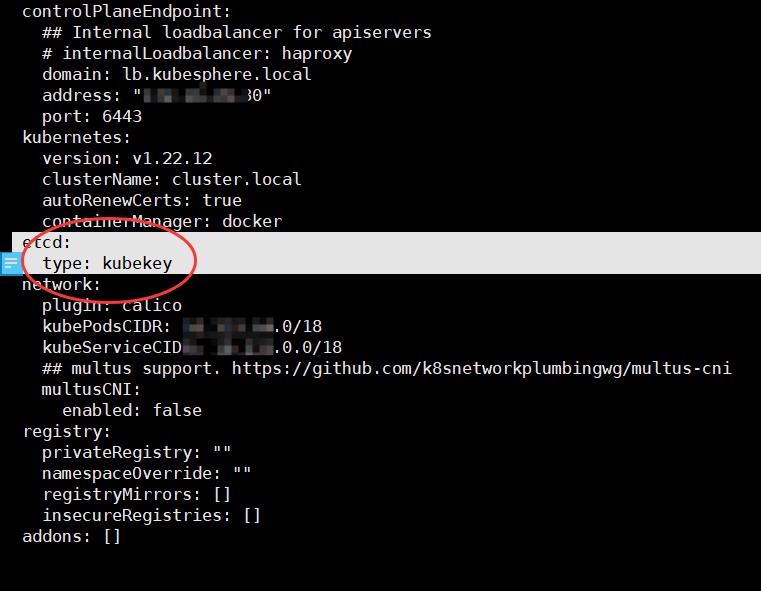

kube-system里面的pod和通过kk安装k8s的时候，etcd的配置如何截图所示。。

请高人指点啥情况。

Yyay · 19 5月

yay

通过systemctl status etcd看是起来了的

redscholar · 19 5月

使用 etcdctl 工具检查集群健康状况

查看 etcd 环境变量

cat /etc/etcd.env

使用证书执行etcdctl命令

ETCDCTL_API=3 etcdctl --endpoints=http://127.0.0.1:2379 --cacert=/etc/ssl/etcd/ssl/ca.crt --cert=/etc/ssl/etcd/ssl/server.crt --key=/etc/ssl/etcd/ssl/server.key endpoint health

Yyay · 20 5月

redscholar
root@kk-master1-41:/data# cat /etc/etcd.env

# Environment file for etcd v3.5.13

ETCD_DATA_DIR=/var/lib/etcd

ETCD_ADVERTISE_CLIENT_URLS=https://172.16.78.41:2379

ETCD_INITIAL_ADVERTISE_PEER_URLS=https://172.16.78.41:2380

ETCD_INITIAL_CLUSTER_STATE=existing

ETCD_METRICS=basic

ETCD_LISTEN_CLIENT_URLS=https://172.16.78.41:2379,https://127.0.0.1:2379

ETCD_INITIAL_CLUSTER_TOKEN=k8s_etcd

ETCD_LISTEN_PEER_URLS=https://172.16.78.41:2380

ETCD_NAME=etcd-kk-master1-41

ETCD_PROXY=off

ETCD_ENABLE_V2=true

ETCD_INITIAL_CLUSTER=etcd-kk-master1-41=https://172.16.78.41:2380,etcd-kk-master2-42=https://172.16.78.42:2380,etcd-kk-master3-43=https://172.16.78.43:2380

ETCD_ELECTION_TIMEOUT=5000

ETCD_HEARTBEAT_INTERVAL=250

ETCD_AUTO_COMPACTION_RETENTION=8

ETCD_SNAPSHOT_COUNT=10000

# TLS settings

ETCD_TRUSTED_CA_FILE=/etc/ssl/etcd/ssl/ca.pem

ETCD_CERT_FILE=/etc/ssl/etcd/ssl/member-kk-master1-41.pem

ETCD_KEY_FILE=/etc/ssl/etcd/ssl/member-kk-master1-41-key.pem

ETCD_CLIENT_CERT_AUTH=true

ETCD_PEER_TRUSTED_CA_FILE=/etc/ssl/etcd/ssl/ca.pem

ETCD_PEER_CERT_FILE=/etc/ssl/etcd/ssl/member-kk-master1-41.pem

ETCD_PEER_KEY_FILE=/etc/ssl/etcd/ssl/member-kk-master1-41-key.pem

ETCD_PEER_CLIENT_CERT_AUTH=true

# CLI settings

ETCDCTL_ENDPOINTS=https://127.0.0.1:2379

ETCDCTL_CACERT=/etc/ssl/etcd/ssl/ca.pem

ETCDCTL_KEY=/etc/ssl/etcd/ssl/admin-kk-master1-41-key.pem

ETCDCTL_CERT=/etc/ssl/etcd/ssl/admin-kk-master1-41.pem

root@kk-master1-41:/data#

root@kk-master1-41:/data# ETCDCTL_API=3 etcdctl –endpoints=http://127.0.0.1:2379 –cacert=/etc/ssl/etcd/ssl/ca.crt –cert=/etc/ssl/etcd/ssl/server.crt –key=/etc/ssl/etcd/ssl/server.key endpoint health

Error: open /etc/ssl/etcd/ssl/server.crt: no such file or directory

root@kk-master1-41:/data#
提示找不到
Error: open /etc/ssl/etcd/ssl/server.crt: no such file or directory
是什么原因呢，谢谢。

redscholar · 20 5月

你的/etc/etcd.env配置文件里面证书是

# CLI settings

ETCDCTL_ENDPOINTS=https://127.0.0.1:2379

ETCDCTL_CACERT=/etc/ssl/etcd/ssl/ca.pem

ETCDCTL_KEY=/etc/ssl/etcd/ssl/admin-kk-master1-41-key.pem

ETCDCTL_CERT=/etc/ssl/etcd/ssl/admin-kk-master1-41.pem

把命令中的证书路径替换成这个

Yyay · 20 5月

redscholar
root@kk-master1-41:/# ETCDCTL_API=3 etcdctl –endpoints=http://127.0.0.1:2379 –cacert=/etc/ssl/etcd/ssl/ca.pem –cert=/etc/ssl/etcd/ssl/admin-kk-master1-41.pem –key=/etc/ssl/etcd/ssl/admin-kk-master1-41-key.pem endpoint health

{“level”:“warn”,“ts”:“2025-05-20T12:23:56.447465+0800”,“logger”:“client”,“caller”:“v3@v3.5.13/retry_interceptor.go:62”,“msg”:“retrying of unary invoker failed”,“target”:“etcd-endpoints://0xc00015e000/127.0.0.1:2379”,“attempt”:0,“error”:"rpc error: code = DeadlineExceeded desc = latest balancer error: last connection error: connection error: desc = \“error reading server preface: read tcp 127.0.0.1:47868->127.0.0.1:2379: read: connection reset by peer\”"}

http://127.0.0.1:2379 is unhealthy: failed to commit proposal: context deadline exceeded

Error: unhealthy cluster

root@kk-master1-41:/#

现在提示这个错误。

Yyay · 20 5月

谢谢指导

Yyay · 20 5月

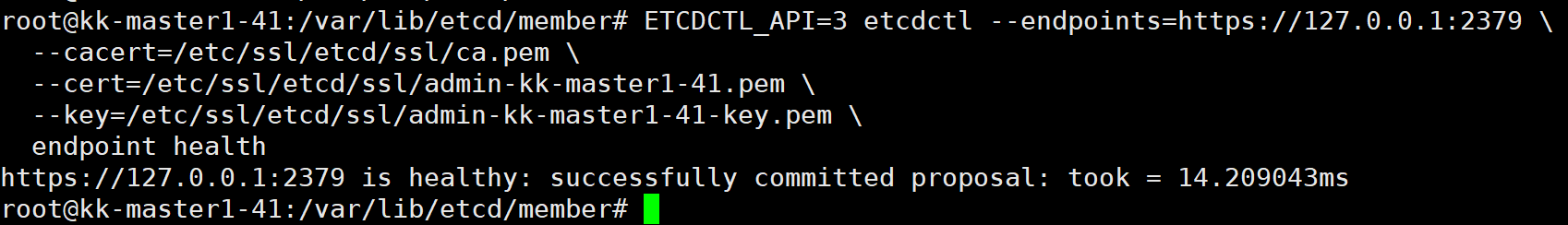

root@kk-master1-41:/var/lib/etcd/member# ETCDCTL_API=3 etcdctl –endpoints=https://127.0.0.1:2379 \

–cacert=/etc/ssl/etcd/ssl/ca.pem \

–cert=/etc/ssl/etcd/ssl/admin-kk-master1-41.pem \

–key=/etc/ssl/etcd/ssl/admin-kk-master1-41-key.pem \

endpoint health

https://127.0.0.1:2379 is healthy: successfully committed proposal: took = 16.209597ms

root@kk-master1-41:/var/lib/etcd/member#

我用上面的这个命令，就可以访问，是不是要https才可以啊，我应该如何修改呢，谢谢。

Yyay · 20 5月

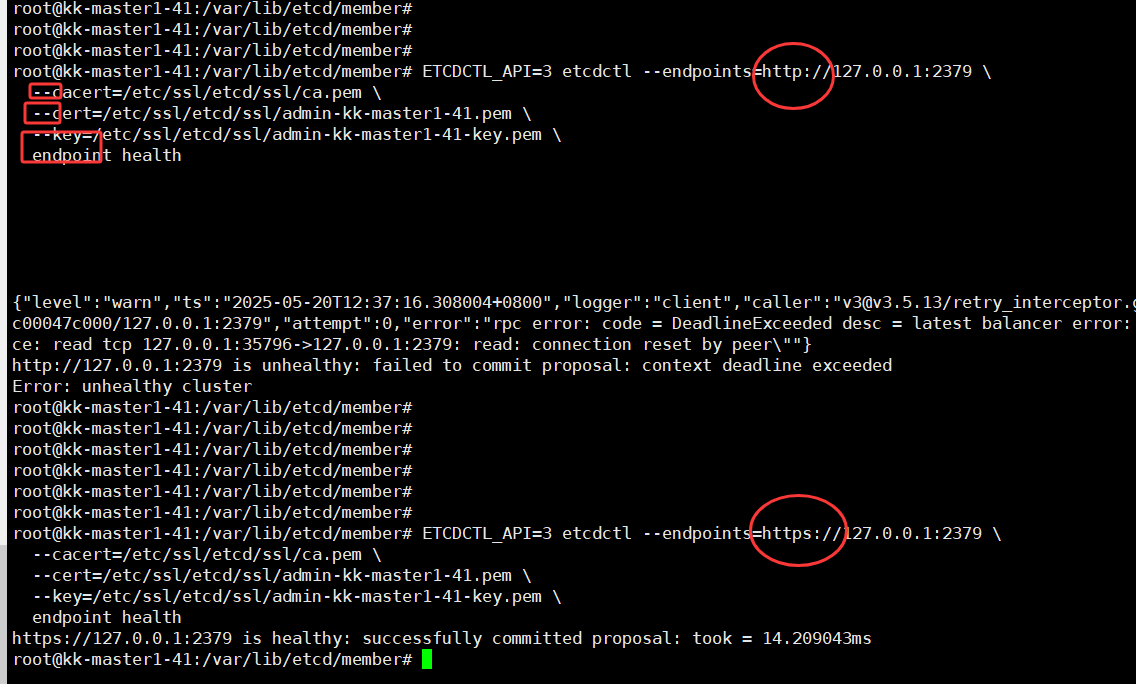

两个问题，第一个，你给我的代码，两个横杠，被过滤了一个，所以，有问题，第二个问题，http不可以，https就可以了。

Yyay · 20 5月

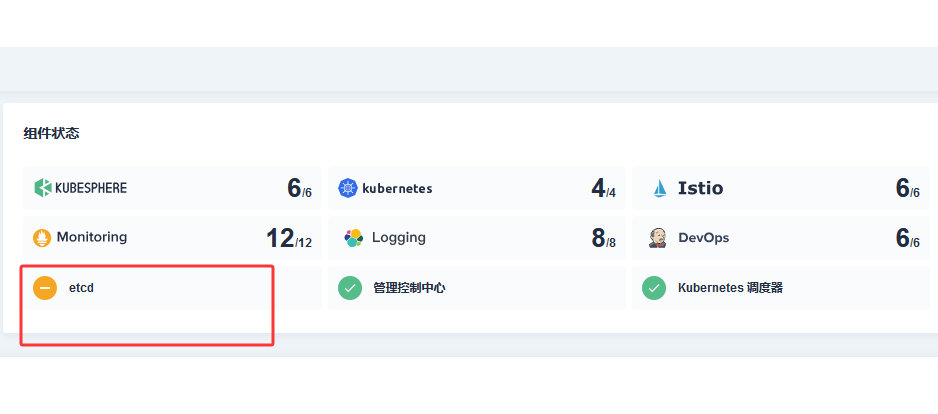

但是通过kubesphere后台看到etcd还是黄色的，应该是不正常的状态。

Yyay · 20 5月

redscholar · 20 5月

yay 三个节点都看一下

Yyay · 20 5月

redscholar
https://127.0.0.1:2379 is healthy: successfully committed proposal: took = 14.778182ms
三个节点都提示这个，

root@kk-master1-41:/var/lib/etcd/member# ETCDCTL_API=3 etcdctl --endpoints=https://127.0.0.1:2379 \ --cacert=/etc/ssl/etcd/ssl/ca.pem \ --cert=/etc/ssl/etcd/ssl/admin-kk-master1-41.pem \ --key=/etc/ssl/etcd/ssl/admin-kk-master1-41-key.pem \ endpoint health https://127.0.0.1:2379 is healthy: successfully committed proposal: took = 14.778182ms root@kk-master1-41:/var/lib/etcd/member#

root@kk-master2-42:/# ETCDCTL_API=3 etcdctl –endpoints=https://127.0.0.1:2379 \

–cacert=/etc/ssl/etcd/ssl/ca.pem \

–cert=/etc/ssl/etcd/ssl/admin-kk-master2-42.pem \

–key=/etc/ssl/etcd/ssl/admin-kk-master2-42-key.pem \

endpoint health

https://127.0.0.1:2379 is healthy: successfully committed proposal: took = 5.56972ms

root@kk-master2-42:/#

root@kk-master3-43:/# ETCDCTL_API=3 etcdctl –endpoints=https://127.0.0.1:2379 \

–cacert=/etc/ssl/etcd/ssl/ca.pem \

–cert=/etc/ssl/etcd/ssl/admin-kk-master3-43.pem \

–key=/etc/ssl/etcd/ssl/admin-kk-master3-43-key.pem \

endpoint health

https://127.0.0.1:2379 is healthy: successfully committed proposal: took = 15.389317ms

root@kk-master3-43:/#

redscholar · 20 5月

你的etcd集群是好的。外部etcd默认是不会被监控的。
你可以在kubesphere-monitoring-system 命名空间下创建一个名为etcd 的 servicemonitors 来监控外部etcd
或者启用cc中的etcd监控
https://github.com/kubesphere/ks-installer/blob/cdd3d677f2bbdcd8c97186bf569cbc9c1deda82d/deploy/cluster-configuration.yaml#L17-L21

Yyay · 20 5月

redscholar 你的意思是，默认kubesphere不会监控用过kk默认安装的etcd吗？

Yyay · 20 5月

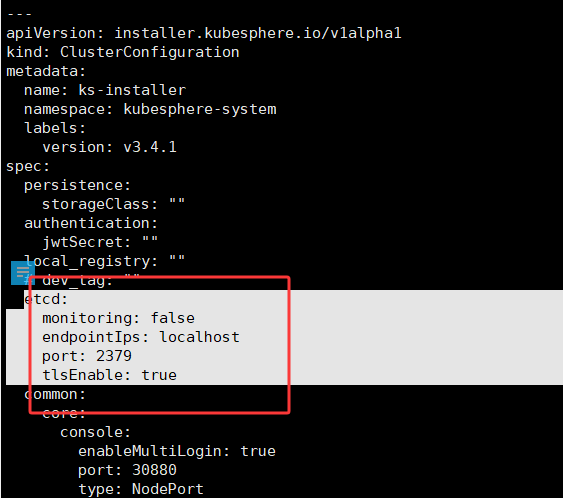

我这样子的配置，他也不会监控啊。

Yyay · 20 5月

如何kk安装etcd和传统安装一样，放在kube-system空间里面，而不是以系统服务的形式出现呢？

redscholar · 20 5月

yay 把monitoring改成true, endpointIps改成实际ip

Yyay · 20 5月

redscholar

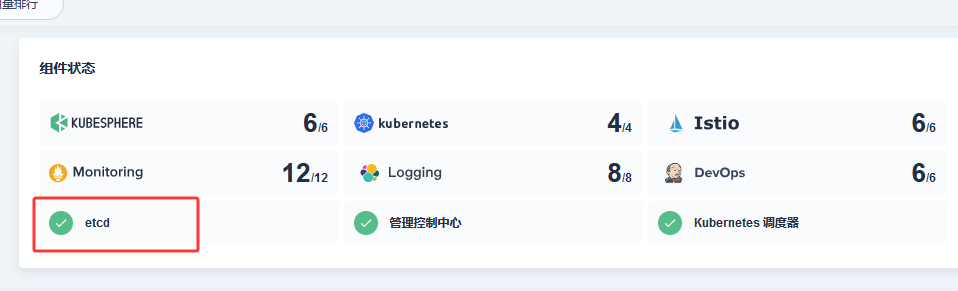

谢谢，搞定了，感谢支持。
