操作系统信息
云主机，Anolis 8.8，16C/32G
Kubernetes版本信息
将 kubectl version 命令执行结果贴在下方
# kubectl version
WARNING: This version information is deprecated and will be replaced with the output from kubectl version --short. Use --output=yaml|json to get the full version.
Client Version: version.Info{Major:"1", Minor:"26", GitVersion:"v1.26.15", GitCommit:"1649f592f1909b97aa3c2a0a8f968a3fd05a7b8b", GitTreeState:"clean", BuildDate:"2024-03-14T01:05:39Z", GoVersion:"go1.21.8", Compiler:"gc", Platform:"linux/amd64"}
Kustomize Version: v4.5.7
Server Version: version.Info{Major:"1", Minor:"26", GitVersion:"v1.26.15", GitCommit:"1649f592f1909b97aa3c2a0a8f968a3fd05a7b8b", GitTreeState:"clean", BuildDate:"2024-03-14T00:54:27Z", GoVersion:"go1.21.8", Compiler:"gc", Platform:"linux/amd64"}
容器运行时
将 docker version / crictl version / nerdctl version 结果贴在下方
# crictl version
Version: 0.1.0
RuntimeName: containerd
RuntimeVersion: v1.6.19
RuntimeApiVersion: v1
# nerdctl version
Client:
Version: v1.2.1
OS/Arch: linux/amd64
Git commit: a0bbfd75ba92bcb11ac6059bf4f6f4e50c6da0b8
buildctl:
Version: v0.11.5
GitCommit: 252ae63bcf2a9b62777add4838df5a257b86e991
Server:
containerd:
Version: v1.6.19
GitCommit: 1e1ea6e986c6c86565bc33d52e34b81b3e2bc71f
runc:
Version: 1.1.4
GitCommit: v1.1.4-0-g5fd4c4d1
KubeSphere版本信息
v4.1.3。在线安装。在已有 k8s 上使用 chart 包安装。
另外，v3.4.1 升级到v4.1.3 同样遇到了此问题，后续删除了这个 kse，重新部署。

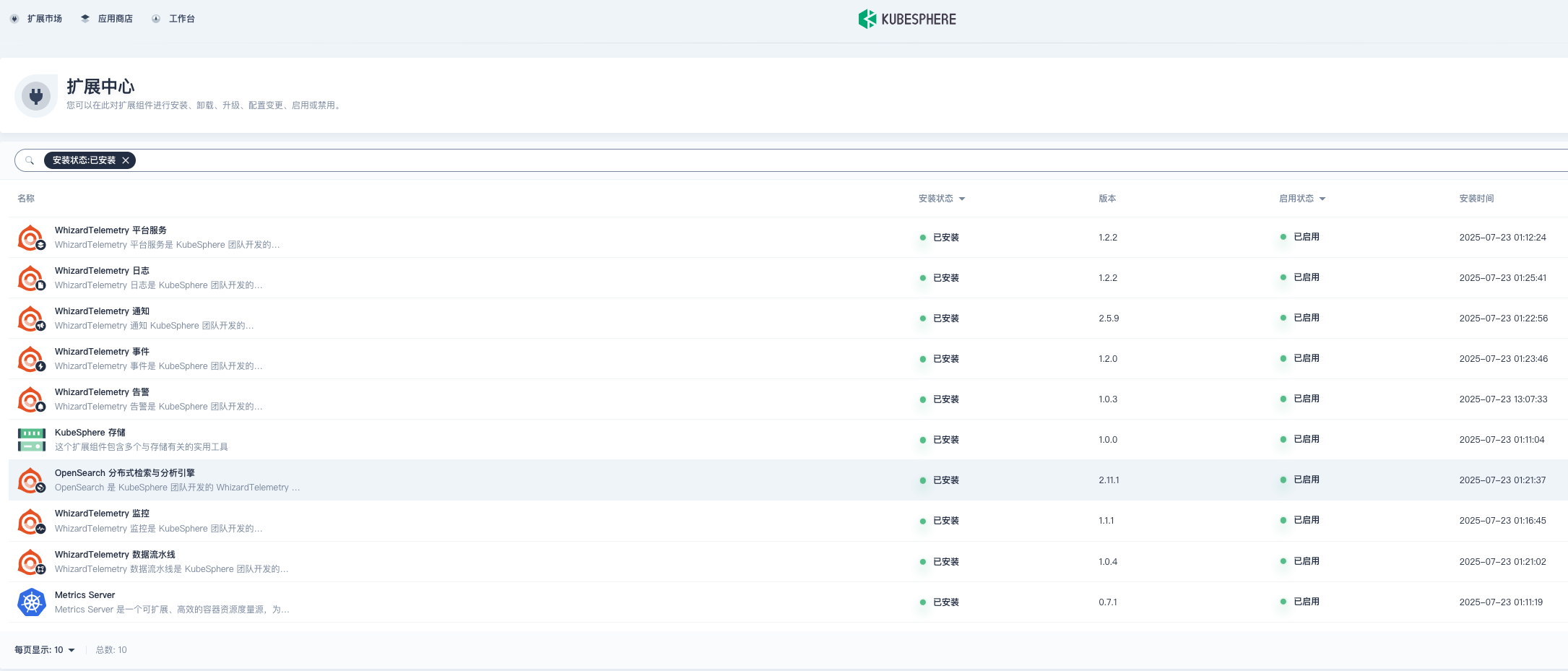

扩展安装情况
遇到的问题

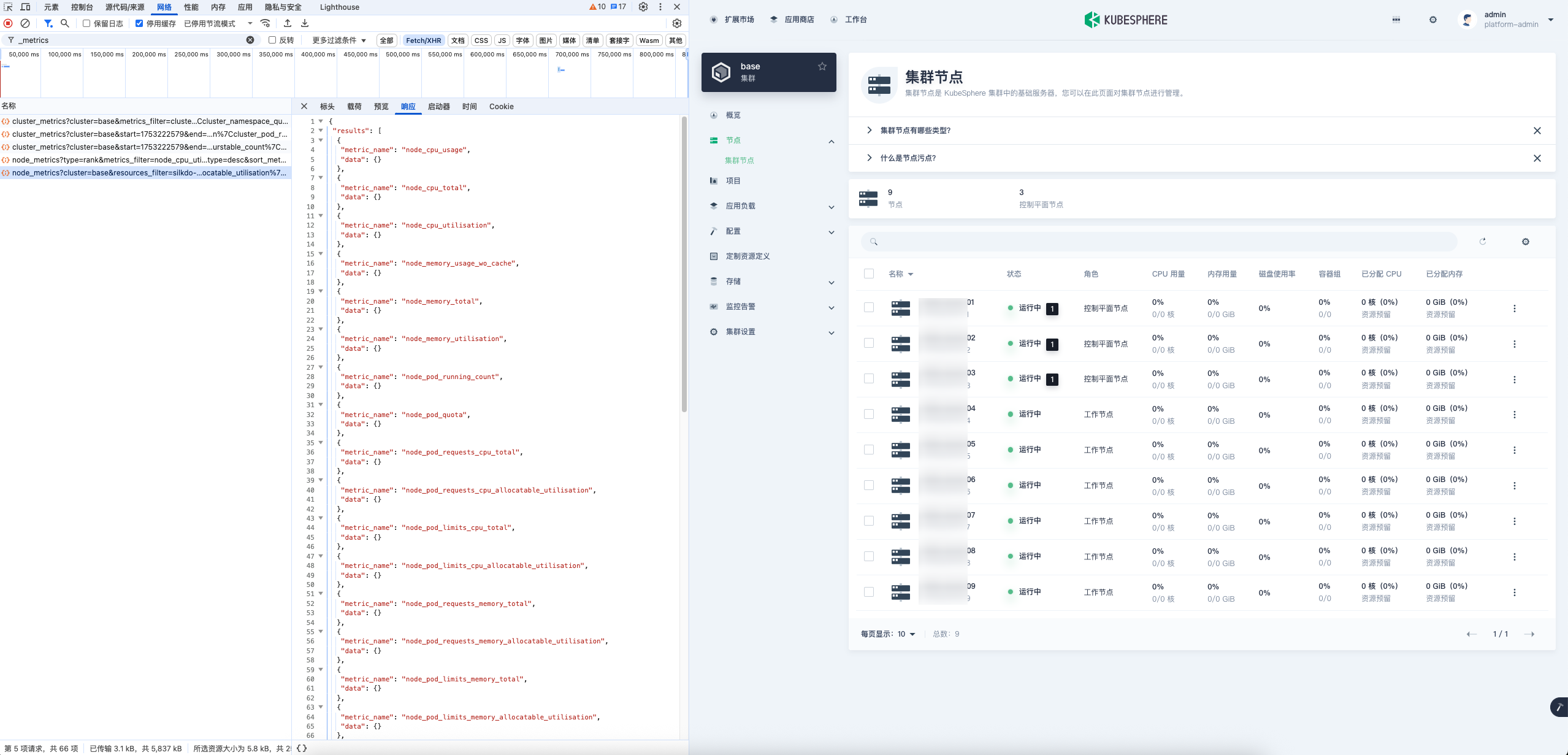

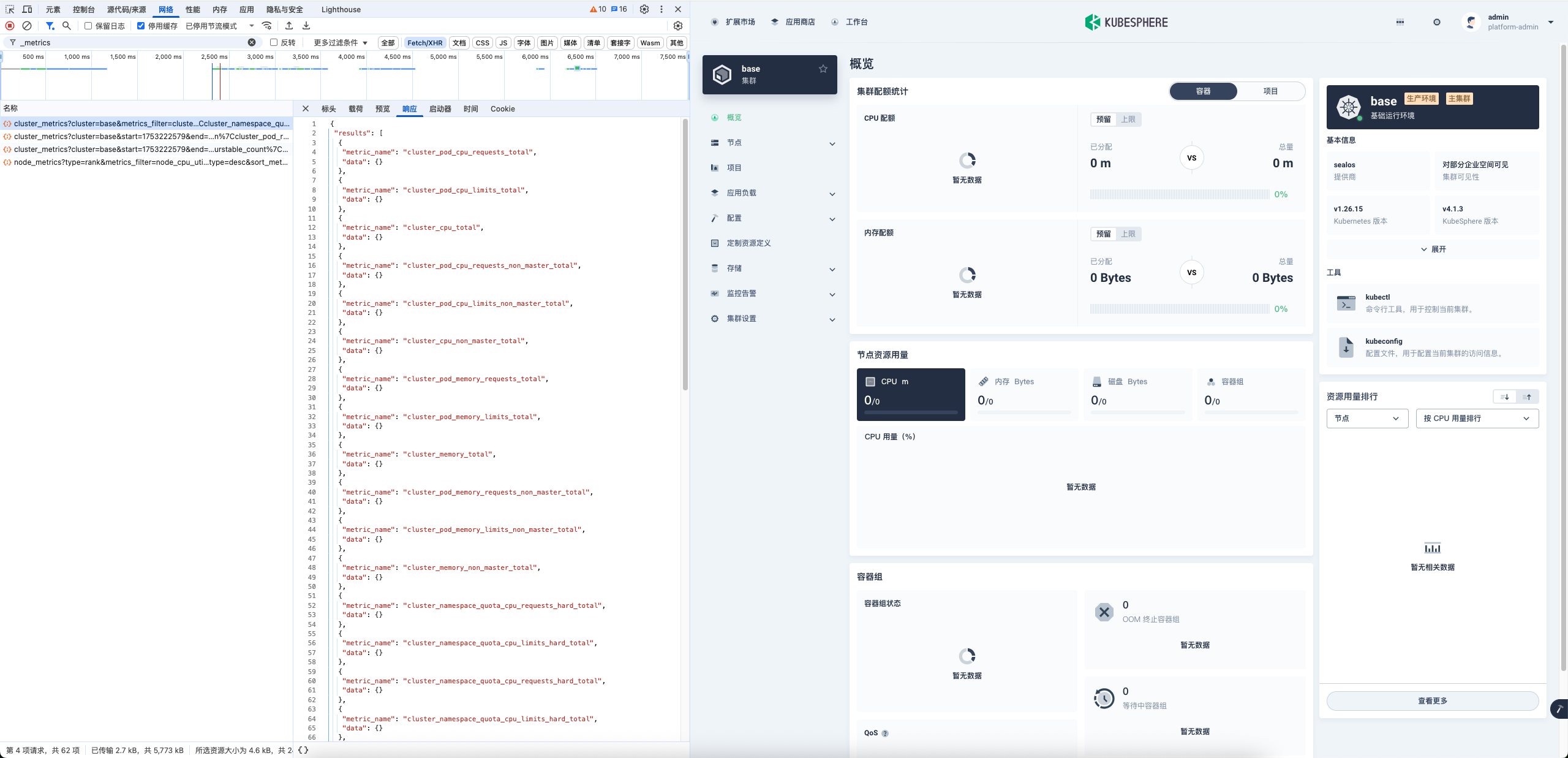

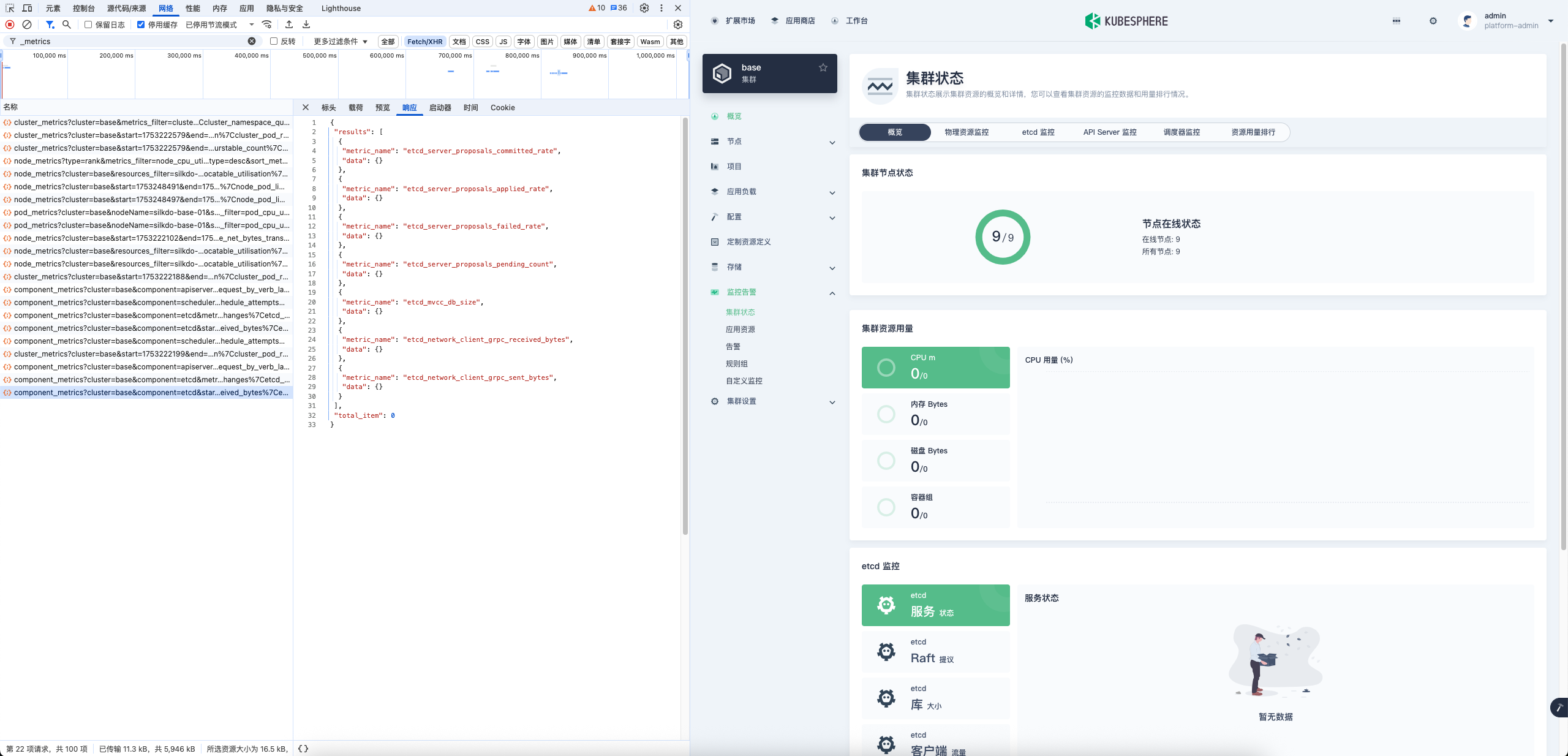

console 界面无法获取监控指标

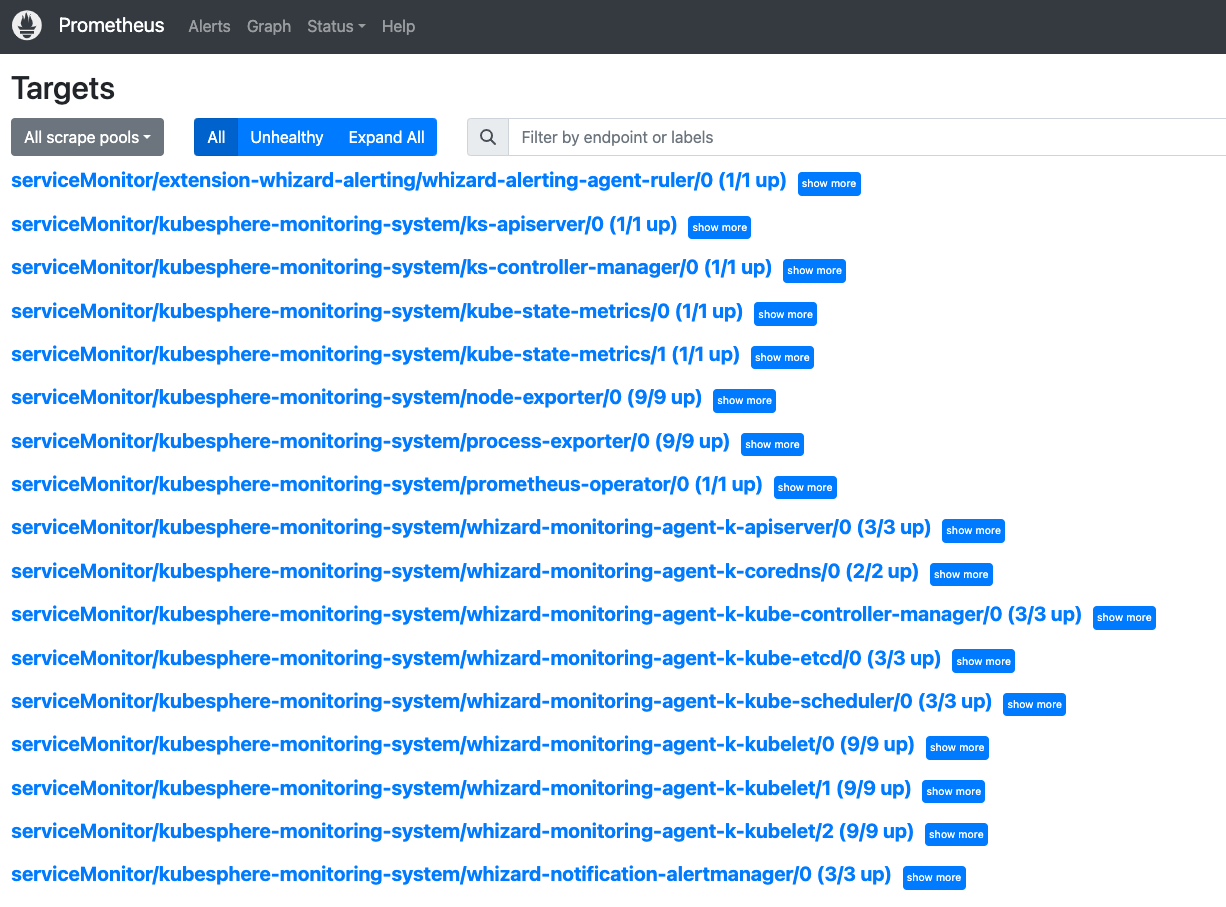

Prometheus 服务是正常的
# Prometheus Configuration
global:
scrape_interval: 1m
scrape_timeout: 10s
scrape_protocols:
- OpenMetricsText1.0.0
- OpenMetricsText0.0.1
- PrometheusText0.0.4
evaluation_interval: 1m
external_labels:
busigroup: base
env: prod
platform: ruyiyun
prometheus: kubesphere-monitoring-system/k8s
prometheus_replica: prometheus-k8s-0
region: cn-lanzhou
rule_files:
- /etc/prometheus/rules/prometheus-k8s-rulefiles-0/*.yaml
scrape_configs:
- job_name: serviceMonitor/extension-whizard-alerting/whizard-alerting-agent-ruler/0
honor_timestamps: true
track_timestamps_staleness: false
scrape_interval: 1m
scrape_timeout: 10s
scrape_protocols:
- OpenMetricsText1.0.0
- OpenMetricsText0.0.1
- PrometheusText0.0.4
metrics_path: /metrics
scheme: http
enable_compression: true
follow_redirects: true
enable_http2: true
relabel_configs:
- source_labels: [job]
separator: ;
regex: (.*)
target_label: __tmp_prometheus_job_name
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_service_label_operated_thanos_ruler, __meta_kubernetes_service_labelpresent_operated_thanos_ruler]
separator: ;
regex: (true);true
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_endpoint_port_name]
separator: ;
regex: web
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
separator: ;
regex: Node;(.*)
target_label: node
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
separator: ;
regex: Pod;(.*)
target_label: pod
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_namespace]
separator: ;
regex: (.*)
target_label: namespace
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_service_name]
separator: ;
regex: (.*)
target_label: service
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_name]
separator: ;
regex: (.*)
target_label: pod
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_container_name]
separator: ;
regex: (.*)
target_label: container
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_phase]
separator: ;
regex: (Failed|Succeeded)
replacement: $1
action: drop
- source_labels: [__meta_kubernetes_service_name]
separator: ;
regex: (.*)
target_label: job
replacement: ${1}
action: replace
- separator: ;
regex: (.*)
target_label: endpoint
replacement: web
action: replace
- source_labels: [__address__]
separator: ;
regex: (.*)
modulus: 1
target_label: __tmp_hash
replacement: $1
action: hashmod
- source_labels: [__tmp_hash]
separator: ;
regex: "0"
replacement: $1
action: keep
kubernetes_sd_configs:
- role: endpoints
kubeconfig_file: ""
follow_redirects: true
enable_http2: true
namespaces:
own_namespace: false
names:
- extension-whizard-alerting
- job_name: serviceMonitor/kubesphere-monitoring-system/ks-apiserver/0
honor_timestamps: true
track_timestamps_staleness: false
scrape_interval: 1m
scrape_timeout: 10s
scrape_protocols:
- OpenMetricsText1.0.0
- OpenMetricsText0.0.1
- PrometheusText0.0.4
metrics_path: /metrics
scheme: http
enable_compression: true
follow_redirects: true
enable_http2: true
relabel_configs:
- source_labels: [job]
separator: ;
regex: (.*)
target_label: __tmp_prometheus_job_name
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_service_label_app, __meta_kubernetes_service_labelpresent_app]
separator: ;
regex: (ks-apiserver);true
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_pod_container_port_number]
separator: ;
regex: "9090"
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
separator: ;
regex: Node;(.*)
target_label: node
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
separator: ;
regex: Pod;(.*)
target_label: pod
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_namespace]
separator: ;
regex: (.*)
target_label: namespace
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_service_name]
separator: ;
regex: (.*)
target_label: service
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_name]
separator: ;
regex: (.*)
target_label: pod
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_container_name]
separator: ;
regex: (.*)
target_label: container
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_phase]
separator: ;
regex: (Failed|Succeeded)
replacement: $1
action: drop
- source_labels: [__meta_kubernetes_service_name]
separator: ;
regex: (.*)
target_label: job
replacement: ${1}
action: replace
- separator: ;
regex: (.*)
target_label: endpoint
replacement: "9090"
action: replace
- separator: ;
regex: (endpoint)
replacement: $1
action: labeldrop
- source_labels: [__address__]
separator: ;
regex: (.*)
modulus: 1
target_label: __tmp_hash
replacement: $1
action: hashmod
- source_labels: [__tmp_hash]
separator: ;
regex: "0"
replacement: $1
action: keep
kubernetes_sd_configs:
- role: endpoints
kubeconfig_file: ""
follow_redirects: true
enable_http2: true
namespaces:
own_namespace: false
names:
- kubesphere-system
- job_name: serviceMonitor/kubesphere-monitoring-system/ks-controller-manager/0
honor_timestamps: true
track_timestamps_staleness: false
scrape_interval: 1m
scrape_timeout: 10s
scrape_protocols:
- OpenMetricsText1.0.0
- OpenMetricsText0.0.1
- PrometheusText0.0.4
metrics_path: /metrics
scheme: http
enable_compression: true
follow_redirects: true
enable_http2: true
relabel_configs:
- source_labels: [job]
separator: ;
regex: (.*)
target_label: __tmp_prometheus_job_name
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_service_label_app, __meta_kubernetes_service_labelpresent_app]
separator: ;
regex: (ks-controller-manager);true
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_pod_container_port_number]
separator: ;
regex: "8080"
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
separator: ;
regex: Node;(.*)
target_label: node
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
separator: ;
regex: Pod;(.*)
target_label: pod
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_namespace]
separator: ;
regex: (.*)
target_label: namespace
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_service_name]
separator: ;
regex: (.*)
target_label: service
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_name]
separator: ;
regex: (.*)
target_label: pod
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_container_name]
separator: ;
regex: (.*)
target_label: container
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_phase]
separator: ;
regex: (Failed|Succeeded)
replacement: $1
action: drop
- source_labels: [__meta_kubernetes_service_name]
separator: ;
regex: (.*)
target_label: job
replacement: ${1}
action: replace
- separator: ;
regex: (.*)
target_label: endpoint
replacement: "8080"
action: replace
- separator: ;
regex: (endpoint)
replacement: $1
action: labeldrop
- source_labels: [__address__]
separator: ;
regex: (.*)
modulus: 1
target_label: __tmp_hash
replacement: $1
action: hashmod
- source_labels: [__tmp_hash]
separator: ;
regex: "0"
replacement: $1
action: keep
kubernetes_sd_configs:
- role: endpoints
kubeconfig_file: ""
follow_redirects: true
enable_http2: true
namespaces:
own_namespace: false
names:
- kubesphere-system
- job_name: serviceMonitor/kubesphere-monitoring-system/kube-state-metrics/0
honor_labels: true
honor_timestamps: true
track_timestamps_staleness: false
scrape_interval: 1m
scrape_timeout: 10s
scrape_protocols:
- OpenMetricsText1.0.0
- OpenMetricsText0.0.1
- PrometheusText0.0.4
metrics_path: /metrics
scheme: https
enable_compression: true
authorization:
type: Bearer
credentials_file: /var/run/secrets/kubernetes.io/serviceaccount/token
tls_config:
insecure_skip_verify: true
follow_redirects: true
enable_http2: true
relabel_configs:
- source_labels: [job]
separator: ;
regex: (.*)
target_label: __tmp_prometheus_job_name
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_service_label_app_kubernetes_io_instance, __meta_kubernetes_service_labelpresent_app_kubernetes_io_instance]
separator: ;
regex: (whizard-monitoring-agent);true
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_service_label_app_kubernetes_io_name, __meta_kubernetes_service_labelpresent_app_kubernetes_io_name]
separator: ;
regex: (kube-state-metrics);true
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_endpoint_port_name]
separator: ;
regex: http
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
separator: ;
regex: Node;(.*)
target_label: node
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
separator: ;
regex: Pod;(.*)
target_label: pod
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_namespace]
separator: ;
regex: (.*)
target_label: namespace
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_service_name]
separator: ;
regex: (.*)
target_label: service
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_name]
separator: ;
regex: (.*)
target_label: pod
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_container_name]
separator: ;
regex: (.*)
target_label: container
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_phase]
separator: ;
regex: (Failed|Succeeded)
replacement: $1
action: drop
- source_labels: [__meta_kubernetes_service_name]
separator: ;
regex: (.*)
target_label: job
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_service_label_app_kubernetes_io_name]
separator: ;
regex: (.+)
target_label: job
replacement: ${1}
action: replace
- separator: ;
regex: (.*)
target_label: endpoint
replacement: http
action: replace
- separator: ;
regex: (container|pod|service|endpoint|namespace)
replacement: $1
action: labeldrop
- source_labels: [__address__]
separator: ;
regex: (.*)
modulus: 1
target_label: __tmp_hash
replacement: $1
action: hashmod
- source_labels: [__tmp_hash]
separator: ;
regex: "0"
replacement: $1
action: keep
metric_relabel_configs:
- source_labels: [label_kubesphere_io_workspace]
separator: ;
regex: (.*)
target_label: workspace
replacement: $1
action: replace
kubernetes_sd_configs:
- role: endpoints
kubeconfig_file: ""
follow_redirects: true
enable_http2: true
namespaces:
own_namespace: false
names:
- kubesphere-monitoring-system
- job_name: serviceMonitor/kubesphere-monitoring-system/kube-state-metrics/1
honor_labels: true
honor_timestamps: true
track_timestamps_staleness: false
scrape_interval: 1m
scrape_timeout: 10s
scrape_protocols:
- OpenMetricsText1.0.0
- OpenMetricsText0.0.1
- PrometheusText0.0.4
metrics_path: /metrics
scheme: https
enable_compression: true
authorization:
type: Bearer
credentials_file: /var/run/secrets/kubernetes.io/serviceaccount/token
tls_config:
insecure_skip_verify: true
follow_redirects: true
enable_http2: true
relabel_configs:
- source_labels: [job]
separator: ;
regex: (.*)
target_label: __tmp_prometheus_job_name
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_service_label_app_kubernetes_io_instance, __meta_kubernetes_service_labelpresent_app_kubernetes_io_instance]
separator: ;
regex: (whizard-monitoring-agent);true
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_service_label_app_kubernetes_io_name, __meta_kubernetes_service_labelpresent_app_kubernetes_io_name]
separator: ;
regex: (kube-state-metrics);true
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_endpoint_port_name]
separator: ;
regex: metrics
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
separator: ;
regex: Node;(.*)
target_label: node
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
separator: ;
regex: Pod;(.*)
target_label: pod
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_namespace]
separator: ;
regex: (.*)
target_label: namespace
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_service_name]
separator: ;
regex: (.*)
target_label: service
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_name]
separator: ;
regex: (.*)
target_label: pod
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_container_name]
separator: ;
regex: (.*)
target_label: container
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_phase]
separator: ;
regex: (Failed|Succeeded)
replacement: $1
action: drop
- source_labels: [__meta_kubernetes_service_name]
separator: ;
regex: (.*)
target_label: job
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_service_label_app_kubernetes_io_name]
separator: ;
regex: (.+)
target_label: job
replacement: ${1}
action: replace
- separator: ;
regex: (.*)
target_label: endpoint
replacement: metrics
action: replace
- separator: ;
regex: (container|pod|service|endpoint|namespace)
replacement: $1
action: labeldrop
- source_labels: [__address__]
separator: ;
regex: (.*)
modulus: 1
target_label: __tmp_hash
replacement: $1
action: hashmod
- source_labels: [__tmp_hash]
separator: ;
regex: "0"
replacement: $1
action: keep
metric_relabel_configs:
- source_labels: [label_kubesphere_io_workspace]
separator: ;
regex: (.*)
target_label: workspace
replacement: $1
action: replace
kubernetes_sd_configs:
- role: endpoints
kubeconfig_file: ""
follow_redirects: true
enable_http2: true
namespaces:
own_namespace: false
names:
- kubesphere-monitoring-system
- job_name: serviceMonitor/kubesphere-monitoring-system/node-exporter/0
honor_timestamps: true
track_timestamps_staleness: false
scrape_interval: 1m
scrape_timeout: 10s
scrape_protocols:
- OpenMetricsText1.0.0
- OpenMetricsText0.0.1
- PrometheusText0.0.4
metrics_path: /metrics
scheme: https
enable_compression: true
authorization:
type: Bearer
credentials_file: /var/run/secrets/kubernetes.io/serviceaccount/token
tls_config:
insecure_skip_verify: true
follow_redirects: true
enable_http2: true
relabel_configs:
- source_labels: [job]
separator: ;
regex: (.*)
target_label: __tmp_prometheus_job_name
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_service_label_app_kubernetes_io_instance, __meta_kubernetes_service_labelpresent_app_kubernetes_io_instance]
separator: ;
regex: (whizard-monitoring-agent);true
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_service_label_app_kubernetes_io_name, __meta_kubernetes_service_labelpresent_app_kubernetes_io_name]
separator: ;
regex: (prometheus-node-exporter);true
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_endpoint_port_name]
separator: ;
regex: metrics
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
separator: ;
regex: Node;(.*)
target_label: node
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
separator: ;
regex: Pod;(.*)
target_label: pod
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_namespace]
separator: ;
regex: (.*)
target_label: namespace
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_service_name]
separator: ;
regex: (.*)
target_label: service
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_name]
separator: ;
regex: (.*)
target_label: pod
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_container_name]
separator: ;
regex: (.*)
target_label: container
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_phase]
separator: ;
regex: (Failed|Succeeded)
replacement: $1
action: drop
- source_labels: [__meta_kubernetes_service_name]
separator: ;
regex: (.*)
target_label: job
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_service_label_jobLabel]
separator: ;
regex: (.+)
target_label: job
replacement: ${1}
action: replace
- separator: ;
regex: (.*)
target_label: endpoint
replacement: metrics
action: replace
- source_labels: [__meta_kubernetes_pod_host_ip]
separator: ;
regex: (.*)
target_label: instance
replacement: $1
action: replace
- source_labels: [__address__]
separator: ;
regex: (.*)
modulus: 1
target_label: __tmp_hash
replacement: $1
action: hashmod
- source_labels: [__tmp_hash]
separator: ;
regex: "0"
replacement: $1
action: keep
metric_relabel_configs:
- source_labels: [__name__]
separator: ;
regex: .*
replacement: $1
action: keep
kubernetes_sd_configs:
- role: endpoints
kubeconfig_file: ""
follow_redirects: true
enable_http2: true
namespaces:
own_namespace: false
names:
- kubesphere-monitoring-system
- job_name: serviceMonitor/kubesphere-monitoring-system/process-exporter/0
honor_labels: true
honor_timestamps: true
track_timestamps_staleness: false
scrape_interval: 30s
scrape_timeout: 10s
scrape_protocols:
- OpenMetricsText1.0.0
- OpenMetricsText0.0.1
- PrometheusText0.0.4
metrics_path: /metrics/process
scheme: https
enable_compression: true
authorization:
type: Bearer
credentials_file: /var/run/secrets/kubernetes.io/serviceaccount/token
tls_config:
insecure_skip_verify: true
follow_redirects: true
enable_http2: true
relabel_configs:
- source_labels: [job]
separator: ;
regex: (.*)
target_label: __tmp_prometheus_job_name
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_service_label_app_kubernetes_io_instance, __meta_kubernetes_service_labelpresent_app_kubernetes_io_instance]
separator: ;
regex: (whizard-monitoring-agent);true
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_service_label_app_kubernetes_io_name, __meta_kubernetes_service_labelpresent_app_kubernetes_io_name]
separator: ;
regex: (prometheus-node-exporter);true
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_endpoint_port_name]
separator: ;
regex: metrics
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
separator: ;
regex: Node;(.*)
target_label: node
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
separator: ;
regex: Pod;(.*)
target_label: pod
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_namespace]
separator: ;
regex: (.*)
target_label: namespace
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_service_name]
separator: ;
regex: (.*)
target_label: service
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_name]
separator: ;
regex: (.*)
target_label: pod
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_container_name]
separator: ;
regex: (.*)
target_label: container
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_phase]
separator: ;
regex: (Failed|Succeeded)
replacement: $1
action: drop
- source_labels: [__meta_kubernetes_service_name]
separator: ;
regex: (.*)
target_label: job
replacement: ${1}
action: replace
- separator: ;
regex: (.*)
target_label: endpoint
replacement: metrics
action: replace
- source_labels: [__meta_kubernetes_pod_node_name]
separator: ;
regex: (.*)
target_label: node
replacement: $1
action: replace
- source_labels: [job]
separator: ;
regex: (.*)
target_label: job
replacement: process-exporter
action: replace
- source_labels: [__address__]
separator: ;
regex: (.*)
modulus: 1
target_label: __tmp_hash
replacement: $1
action: hashmod
- source_labels: [__tmp_hash]
separator: ;
regex: "0"
replacement: $1
action: keep
kubernetes_sd_configs:
- role: endpoints
kubeconfig_file: ""
follow_redirects: true
enable_http2: true
namespaces:
own_namespace: false
names:
- kubesphere-monitoring-system
- job_name: serviceMonitor/kubesphere-monitoring-system/prometheus-operator/0
honor_labels: true
honor_timestamps: true
track_timestamps_staleness: false
scrape_interval: 1m
scrape_timeout: 10s
scrape_protocols:
- OpenMetricsText1.0.0
- OpenMetricsText0.0.1
- PrometheusText0.0.4
metrics_path: /metrics
scheme: https
enable_compression: true
tls_config:
ca_file: /etc/prometheus/certs/0_kubesphere-monitoring-system_whizard-monitoring-agent-k-admission_ca
server_name: prometheus-operator
insecure_skip_verify: false
follow_redirects: true
enable_http2: true
relabel_configs:
- source_labels: [job]
separator: ;
regex: (.*)
target_label: __tmp_prometheus_job_name
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_service_label_app, __meta_kubernetes_service_labelpresent_app]
separator: ;
regex: (kube-prometheus-stack-operator);true
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_service_label_release, __meta_kubernetes_service_labelpresent_release]
separator: ;
regex: (whizard-monitoring-agent);true
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_endpoint_port_name]
separator: ;
regex: https
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
separator: ;
regex: Node;(.*)
target_label: node
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
separator: ;
regex: Pod;(.*)
target_label: pod
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_namespace]
separator: ;
regex: (.*)
target_label: namespace
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_service_name]
separator: ;
regex: (.*)
target_label: service
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_name]
separator: ;
regex: (.*)
target_label: pod
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_container_name]
separator: ;
regex: (.*)
target_label: container
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_phase]
separator: ;
regex: (Failed|Succeeded)
replacement: $1
action: drop
- source_labels: [__meta_kubernetes_service_name]
separator: ;
regex: (.*)
target_label: job
replacement: ${1}
action: replace
- separator: ;
regex: (.*)
target_label: endpoint
replacement: https
action: replace
- source_labels: [__address__]
separator: ;
regex: (.*)
modulus: 1
target_label: __tmp_hash
replacement: $1
action: hashmod
- source_labels: [__tmp_hash]
separator: ;
regex: "0"
replacement: $1
action: keep
kubernetes_sd_configs:
- role: endpoints
kubeconfig_file: ""
follow_redirects: true
enable_http2: true
namespaces:
own_namespace: false
names:
- kubesphere-monitoring-system
- job_name: serviceMonitor/kubesphere-monitoring-system/whizard-monitoring-agent-k-apiserver/0
honor_timestamps: true
track_timestamps_staleness: false
scrape_interval: 1m
scrape_timeout: 10s
scrape_protocols:
- OpenMetricsText1.0.0
- OpenMetricsText0.0.1
- PrometheusText0.0.4
metrics_path: /metrics
scheme: https
enable_compression: true
authorization:
type: Bearer
credentials_file: /var/run/secrets/kubernetes.io/serviceaccount/token
tls_config:
ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
server_name: kubernetes
insecure_skip_verify: false
follow_redirects: true
enable_http2: true
relabel_configs:
- source_labels: [job]
separator: ;
regex: (.*)
target_label: __tmp_prometheus_job_name
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_service_label_component, __meta_kubernetes_service_labelpresent_component]
separator: ;
regex: (apiserver);true
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_service_label_provider, __meta_kubernetes_service_labelpresent_provider]
separator: ;
regex: (kubernetes);true
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_endpoint_port_name]
separator: ;
regex: https
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
separator: ;
regex: Node;(.*)
target_label: node
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
separator: ;
regex: Pod;(.*)
target_label: pod
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_namespace]
separator: ;
regex: (.*)
target_label: namespace
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_service_name]
separator: ;
regex: (.*)
target_label: service
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_name]
separator: ;
regex: (.*)
target_label: pod
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_container_name]
separator: ;
regex: (.*)
target_label: container
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_phase]
separator: ;
regex: (Failed|Succeeded)
replacement: $1
action: drop
- source_labels: [__meta_kubernetes_service_name]
separator: ;
regex: (.*)
target_label: job
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_service_label_component]
separator: ;
regex: (.+)
target_label: job
replacement: ${1}
action: replace
- separator: ;
regex: (.*)
target_label: endpoint
replacement: https
action: replace
- source_labels: [__address__]
separator: ;
regex: (.*)
modulus: 1
target_label: __tmp_hash
replacement: $1
action: hashmod
- source_labels: [__tmp_hash]
separator: ;
regex: "0"
replacement: $1
action: keep
metric_relabel_configs:
- source_labels: [__name__, le]
separator: ;
regex: apiserver_request_duration_seconds_bucket;(0.15|0.2|0.3|0.35|0.4|0.45|0.6|0.7|0.8|0.9|1.25|1.5|1.75|2|3|3.5|4|4.5|6|7|8|9|15|25|40|50)
replacement: $1
action: drop
- source_labels: [__name__]
separator: ;
regex: kubelet_(pod_worker_latency_microseconds|pod_start_latency_microseconds|cgroup_manager_latency_microseconds|pod_worker_start_latency_microseconds|pleg_relist_latency_microseconds|pleg_relist_interval_microseconds|runtime_operations|runtime_operations_latency_microseconds|runtime_operations_errors|eviction_stats_age_microseconds|device_plugin_registration_count|device_plugin_alloc_latency_microseconds|network_plugin_operations_latency_microseconds)
replacement: $1
action: drop
- source_labels: [__name__]
separator: ;
regex: scheduler_(e2e_scheduling_latency_microseconds|scheduling_algorithm_predicate_evaluation|scheduling_algorithm_priority_evaluation|scheduling_algorithm_preemption_evaluation|scheduling_algorithm_latency_microseconds|binding_latency_microseconds|scheduling_latency_seconds)
replacement: $1
action: drop
- source_labels: [__name__]
separator: ;
regex: apiserver_(request_count|request_latencies|request_latencies_summary|dropped_requests|storage_data_key_generation_latencies_microseconds|storage_transformation_failures_total|storage_transformation_latencies_microseconds|proxy_tunnel_sync_latency_secs|longrunning_gauge|registered_watchers)
replacement: $1
action: drop
- source_labels: [__name__]
separator: ;
regex: kubelet_docker_(operations|operations_latency_microseconds|operations_errors|operations_timeout)
replacement: $1
action: drop
- source_labels: [__name__]
separator: ;
regex: reflector_(items_per_list|items_per_watch|list_duration_seconds|lists_total|short_watches_total|watch_duration_seconds|watches_total)
replacement: $1
action: drop
- source_labels: [__name__]
separator: ;
regex: etcd_(helper_cache_hit_count|helper_cache_miss_count|helper_cache_entry_count|object_counts|request_cache_get_latencies_summary|request_cache_add_latencies_summary|request_latencies_summary)
replacement: $1
action: drop
- source_labels: [__name__]
separator: ;
regex: transformation_(transformation_latencies_microseconds|failures_total)
replacement: $1
action: drop
- source_labels: [__name__]
separator: ;
regex: (admission_quota_controller_adds|admission_quota_controller_depth|admission_quota_controller_longest_running_processor_microseconds|admission_quota_controller_queue_latency|admission_quota_controller_unfinished_work_seconds|admission_quota_controller_work_duration|APIServiceOpenAPIAggregationControllerQueue1_adds|APIServiceOpenAPIAggregationControllerQueue1_depth|APIServiceOpenAPIAggregationControllerQueue1_longest_running_processor_microseconds|APIServiceOpenAPIAggregationControllerQueue1_queue_latency|APIServiceOpenAPIAggregationControllerQueue1_retries|APIServiceOpenAPIAggregationControllerQueue1_unfinished_work_seconds|APIServiceOpenAPIAggregationControllerQueue1_work_duration|APIServiceRegistrationController_adds|APIServiceRegistrationController_depth|APIServiceRegistrationController_longest_running_processor_microseconds|APIServiceRegistrationController_queue_latency|APIServiceRegistrationController_retries|APIServiceRegistrationController_unfinished_work_seconds|APIServiceRegistrationController_work_duration|autoregister_adds|autoregister_depth|autoregister_longest_running_processor_microseconds|autoregister_queue_latency|autoregister_retries|autoregister_unfinished_work_seconds|autoregister_work_duration|AvailableConditionController_adds|AvailableConditionController_depth|AvailableConditionController_longest_running_processor_microseconds|AvailableConditionController_queue_latency|AvailableConditionController_retries|AvailableConditionController_unfinished_work_seconds|AvailableConditionController_work_duration|crd_autoregistration_controller_adds|crd_autoregistration_controller_depth|crd_autoregistration_controller_longest_running_processor_microseconds|crd_autoregistration_controller_queue_latency|crd_autoregistration_controller_retries|crd_autoregistration_controller_unfinished_work_seconds|crd_autoregistration_controller_work_duration|crdEstablishing_adds|crdEstablishing_depth|crdEstablishing_longest_running_processor_microseconds|crdEstablishing_queue_latency|crdEstablishing_retries|crdEstablishing_unfinished_work_seconds|crdEstablishing_work_duration|crd_finalizer_adds|crd_finalizer_depth|crd_finalizer_longest_running_processor_microseconds|crd_finalizer_queue_latency|crd_finalizer_retries|crd_finalizer_unfinished_work_seconds|crd_finalizer_work_duration|crd_naming_condition_controller_adds|crd_naming_condition_controller_depth|crd_naming_condition_controller_longest_running_processor_microseconds|crd_naming_condition_controller_queue_latency|crd_naming_condition_controller_retries|crd_naming_condition_controller_unfinished_work_seconds|crd_naming_condition_controller_work_duration|crd_openapi_controller_adds|crd_openapi_controller_depth|crd_openapi_controller_longest_running_processor_microseconds|crd_openapi_controller_queue_latency|crd_openapi_controller_retries|crd_openapi_controller_unfinished_work_seconds|crd_openapi_controller_work_duration|DiscoveryController_adds|DiscoveryController_depth|DiscoveryController_longest_running_processor_microseconds|DiscoveryController_queue_latency|DiscoveryController_retries|DiscoveryController_unfinished_work_seconds|DiscoveryController_work_duration|kubeproxy_sync_proxy_rules_latency_microseconds|non_structural_schema_condition_controller_adds|non_structural_schema_condition_controller_depth|non_structural_schema_condition_controller_longest_running_processor_microseconds|non_structural_schema_condition_controller_queue_latency|non_structural_schema_condition_controller_retries|non_structural_schema_condition_controller_unfinished_work_seconds|non_structural_schema_condition_controller_work_duration|rest_client_request_latency_seconds|storage_operation_errors_total|storage_operation_status_count)
replacement: $1
action: drop
- source_labels: [__name__]
separator: ;
regex: etcd_(debugging|disk|server).*
replacement: $1
action: drop
- source_labels: [__name__]
separator: ;
regex: apiserver_admission_controller_admission_latencies_seconds_.*
replacement: $1
action: drop
- source_labels: [__name__]
separator: ;
regex: apiserver_admission_step_admission_latencies_seconds_.*
replacement: $1
action: drop
kubernetes_sd_configs:
- role: endpoints
kubeconfig_file: ""
follow_redirects: true
enable_http2: true
namespaces:
own_namespace: false
names:
- default
- job_name: serviceMonitor/kubesphere-monitoring-system/whizard-monitoring-agent-k-coredns/0
honor_timestamps: true
track_timestamps_staleness: false
scrape_interval: 1m
scrape_timeout: 10s
scrape_protocols:
- OpenMetricsText1.0.0
- OpenMetricsText0.0.1
- PrometheusText0.0.4
metrics_path: /metrics
scheme: http
enable_compression: true
authorization:
type: Bearer
credentials_file: /var/run/secrets/kubernetes.io/serviceaccount/token
follow_redirects: true
enable_http2: true
relabel_configs:
- source_labels: [job]
separator: ;
regex: (.*)
target_label: __tmp_prometheus_job_name
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_service_label_app, __meta_kubernetes_service_labelpresent_app]
separator: ;
regex: (kube-prometheus-stack-coredns);true
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_service_label_release, __meta_kubernetes_service_labelpresent_release]
separator: ;
regex: (whizard-monitoring-agent);true
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_endpoint_port_name]
separator: ;
regex: http-metrics
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
separator: ;
regex: Node;(.*)
target_label: node
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
separator: ;
regex: Pod;(.*)
target_label: pod
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_namespace]
separator: ;
regex: (.*)
target_label: namespace
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_service_name]
separator: ;
regex: (.*)
target_label: service
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_name]
separator: ;
regex: (.*)
target_label: pod
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_container_name]
separator: ;
regex: (.*)
target_label: container
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_phase]
separator: ;
regex: (Failed|Succeeded)
replacement: $1
action: drop
- source_labels: [__meta_kubernetes_service_name]
separator: ;
regex: (.*)
target_label: job
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_service_label_jobLabel]
separator: ;
regex: (.+)
target_label: job
replacement: ${1}
action: replace
- separator: ;
regex: (.*)
target_label: endpoint
replacement: http-metrics
action: replace
- source_labels: [__address__]
separator: ;
regex: (.*)
modulus: 1
target_label: __tmp_hash
replacement: $1
action: hashmod
- source_labels: [__tmp_hash]
separator: ;
regex: "0"
replacement: $1
action: keep
metric_relabel_configs:
- source_labels: [__name__]
separator: ;
regex: coredns_cache_misses_total
replacement: $1
action: drop
kubernetes_sd_configs:
- role: endpoints
kubeconfig_file: ""
follow_redirects: true
enable_http2: true
namespaces:
own_namespace: false
names:
- kube-system
- job_name: serviceMonitor/kubesphere-monitoring-system/whizard-monitoring-agent-k-kube-controller-manager/0
honor_timestamps: true
track_timestamps_staleness: false
scrape_interval: 1m
scrape_timeout: 10s
scrape_protocols:
- OpenMetricsText1.0.0
- OpenMetricsText0.0.1
- PrometheusText0.0.4
metrics_path: /metrics
scheme: https
enable_compression: true
authorization:
type: Bearer
credentials_file: /var/run/secrets/kubernetes.io/serviceaccount/token
tls_config:
ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
insecure_skip_verify: true
follow_redirects: true
enable_http2: true
relabel_configs:
- source_labels: [job]
separator: ;
regex: (.*)
target_label: __tmp_prometheus_job_name
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_service_label_app, __meta_kubernetes_service_labelpresent_app]
separator: ;
regex: (kube-prometheus-stack-kube-controller-manager);true
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_service_label_release, __meta_kubernetes_service_labelpresent_release]
separator: ;
regex: (whizard-monitoring-agent);true
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_endpoint_port_name]
separator: ;
regex: http-metrics
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
separator: ;
regex: Node;(.*)
target_label: node
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
separator: ;
regex: Pod;(.*)
target_label: pod
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_namespace]
separator: ;
regex: (.*)
target_label: namespace
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_service_name]
separator: ;
regex: (.*)
target_label: service
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_name]
separator: ;
regex: (.*)
target_label: pod
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_container_name]
separator: ;
regex: (.*)
target_label: container
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_phase]
separator: ;
regex: (Failed|Succeeded)
replacement: $1
action: drop
- source_labels: [__meta_kubernetes_service_name]
separator: ;
regex: (.*)
target_label: job
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_service_label_jobLabel]
separator: ;
regex: (.+)
target_label: job
replacement: ${1}
action: replace
- separator: ;
regex: (.*)
target_label: endpoint
replacement: http-metrics
action: replace
- source_labels: [__address__]
separator: ;
regex: (.*)
modulus: 1
target_label: __tmp_hash
replacement: $1
action: hashmod
- source_labels: [__tmp_hash]
separator: ;
regex: "0"
replacement: $1
action: keep
metric_relabel_configs:
- source_labels: [__name__]
separator: ;
regex: up
replacement: $1
action: keep
kubernetes_sd_configs:
- role: endpoints
kubeconfig_file: ""
follow_redirects: true
enable_http2: true
namespaces:
own_namespace: false
names:
- kube-system
- job_name: serviceMonitor/kubesphere-monitoring-system/whizard-monitoring-agent-k-kube-etcd/0
honor_timestamps: true
track_timestamps_staleness: false
scrape_interval: 1m
scrape_timeout: 10s
scrape_protocols:
- OpenMetricsText1.0.0
- OpenMetricsText0.0.1
- PrometheusText0.0.4
metrics_path: /metrics
scheme: https
enable_compression: true
authorization:
type: Bearer
credentials_file: /var/run/secrets/kubernetes.io/serviceaccount/token
tls_config:
ca_file: /etc/prometheus/secrets/kube-etcd-client-certs/etcd-client-ca.crt
cert_file: /etc/prometheus/secrets/kube-etcd-client-certs/etcd-client.crt
key_file: /etc/prometheus/secrets/kube-etcd-client-certs/etcd-client.key
insecure_skip_verify: false
follow_redirects: true
enable_http2: true
relabel_configs:
- source_labels: [job]
separator: ;
regex: (.*)
target_label: __tmp_prometheus_job_name
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_service_label_app, __meta_kubernetes_service_labelpresent_app]
separator: ;
regex: (kube-prometheus-stack-kube-etcd);true
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_service_label_release, __meta_kubernetes_service_labelpresent_release]
separator: ;
regex: (whizard-monitoring-agent);true
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_endpoint_port_name]
separator: ;
regex: http-metrics
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
separator: ;
regex: Node;(.*)
target_label: node
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
separator: ;
regex: Pod;(.*)
target_label: pod
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_namespace]
separator: ;
regex: (.*)
target_label: namespace
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_service_name]
separator: ;
regex: (.*)
target_label: service
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_name]
separator: ;
regex: (.*)
target_label: pod
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_container_name]
separator: ;
regex: (.*)
target_label: container
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_phase]
separator: ;
regex: (Failed|Succeeded)
replacement: $1
action: drop
- source_labels: [__meta_kubernetes_service_name]
separator: ;
regex: (.*)
target_label: job
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_service_label_jobLabel]
separator: ;
regex: (.+)
target_label: job
replacement: ${1}
action: replace
- separator: ;
regex: (.*)
target_label: endpoint
replacement: http-metrics
action: replace
- source_labels: [__address__]
separator: ;
regex: (.*)
modulus: 1
target_label: __tmp_hash
replacement: $1
action: hashmod
- source_labels: [__tmp_hash]
separator: ;
regex: "0"
replacement: $1
action: keep
kubernetes_sd_configs:
- role: endpoints
kubeconfig_file: ""
follow_redirects: true
enable_http2: true
namespaces:
own_namespace: false
names:
- kube-system
- job_name: serviceMonitor/kubesphere-monitoring-system/whizard-monitoring-agent-k-kube-scheduler/0
honor_timestamps: true
track_timestamps_staleness: false
scrape_interval: 1m
scrape_timeout: 10s
scrape_protocols:
- OpenMetricsText1.0.0
- OpenMetricsText0.0.1
- PrometheusText0.0.4
metrics_path: /metrics
scheme: https
enable_compression: true
authorization:
type: Bearer
credentials_file: /var/run/secrets/kubernetes.io/serviceaccount/token
tls_config:
ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
insecure_skip_verify: true
follow_redirects: true
enable_http2: true
relabel_configs:
- source_labels: [job]
separator: ;
regex: (.*)
target_label: __tmp_prometheus_job_name
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_service_label_app, __meta_kubernetes_service_labelpresent_app]
separator: ;
regex: (kube-prometheus-stack-kube-scheduler);true
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_service_label_release, __meta_kubernetes_service_labelpresent_release]
separator: ;
regex: (whizard-monitoring-agent);true
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_endpoint_port_name]
separator: ;
regex: http-metrics
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
separator: ;
regex: Node;(.*)
target_label: node
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
separator: ;
regex: Pod;(.*)
target_label: pod
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_namespace]
separator: ;
regex: (.*)
target_label: namespace
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_service_name]
separator: ;
regex: (.*)
target_label: service
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_name]
separator: ;
regex: (.*)
target_label: pod
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_container_name]
separator: ;
regex: (.*)
target_label: container
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_phase]
separator: ;
regex: (Failed|Succeeded)
replacement: $1
action: drop
- source_labels: [__meta_kubernetes_service_name]
separator: ;
regex: (.*)
target_label: job
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_service_label_jobLabel]
separator: ;
regex: (.+)
target_label: job
replacement: ${1}
action: replace
- separator: ;
regex: (.*)
target_label: endpoint
replacement: http-metrics
action: replace
- source_labels: [__address__]
separator: ;
regex: (.*)
modulus: 1
target_label: __tmp_hash
replacement: $1
action: hashmod
- source_labels: [__tmp_hash]
separator: ;
regex: "0"
replacement: $1
action: keep
metric_relabel_configs:
- source_labels: [__name__]
separator: ;
regex: scheduler_(e2e_scheduling_latency_microseconds|scheduling_algorithm_predicate_evaluation|scheduling_algorithm_priority_evaluation|scheduling_algorithm_preemption_evaluation|scheduling_algorithm_latency_microseconds|binding_latency_microseconds|scheduling_latency_seconds)
replacement: $1
action: drop
kubernetes_sd_configs:
- role: endpoints
kubeconfig_file: ""
follow_redirects: true
enable_http2: true
namespaces:
own_namespace: false
names:
- kube-system
- job_name: serviceMonitor/kubesphere-monitoring-system/whizard-monitoring-agent-k-kubelet/0
honor_labels: true
honor_timestamps: true
track_timestamps_staleness: false
scrape_interval: 1m
scrape_timeout: 10s
scrape_protocols:
- OpenMetricsText1.0.0
- OpenMetricsText0.0.1
- PrometheusText0.0.4
metrics_path: /metrics
scheme: https
enable_compression: true
authorization:
type: Bearer
credentials_file: /var/run/secrets/kubernetes.io/serviceaccount/token
tls_config:
ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
insecure_skip_verify: true
follow_redirects: true
enable_http2: true
relabel_configs:
- source_labels: [job]
separator: ;
regex: (.*)
target_label: __tmp_prometheus_job_name
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_service_label_app_kubernetes_io_name, __meta_kubernetes_service_labelpresent_app_kubernetes_io_name]
separator: ;
regex: (kubelet);true
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_service_label_k8s_app, __meta_kubernetes_service_labelpresent_k8s_app]
separator: ;
regex: (kubelet);true
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_endpoint_port_name]
separator: ;
regex: https-metrics
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
separator: ;
regex: Node;(.*)
target_label: node
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
separator: ;
regex: Pod;(.*)
target_label: pod
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_namespace]
separator: ;
regex: (.*)
target_label: namespace
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_service_name]
separator: ;
regex: (.*)
target_label: service
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_name]
separator: ;
regex: (.*)
target_label: pod
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_container_name]
separator: ;
regex: (.*)
target_label: container
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_phase]
separator: ;
regex: (Failed|Succeeded)
replacement: $1
action: drop
- source_labels: [__meta_kubernetes_service_name]
separator: ;
regex: (.*)
target_label: job
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_service_label_k8s_app]
separator: ;
regex: (.+)
target_label: job
replacement: ${1}
action: replace
- separator: ;
regex: (.*)
target_label: endpoint
replacement: https-metrics
action: replace
- source_labels: [__metrics_path__]
separator: ;
regex: (.*)
target_label: metrics_path
replacement: $1
action: replace
- separator: ;
regex: (service|endpoint)
replacement: $1
action: labeldrop
- source_labels: [__address__]
separator: ;
regex: (.*)
modulus: 1
target_label: __tmp_hash
replacement: $1
action: hashmod
- source_labels: [__tmp_hash]
separator: ;
regex: "0"
replacement: $1
action: keep
metric_relabel_configs:
- source_labels: [__name__]
separator: ;
regex: kubelet_node_name|kubelet_running_container_count|kubelet_running_pod_count|kubelet_volume_stats.*|kubelet_pleg_relist_duration_seconds_.+|kubelet_certificate_manager_.+|kubelet_server_expiration_.+|kubelet_pod_worker_.+
replacement: $1
action: keep
kubernetes_sd_configs:
- role: endpoints
kubeconfig_file: ""
follow_redirects: true
enable_http2: true
namespaces:
own_namespace: false
names:
- kube-system
- job_name: serviceMonitor/kubesphere-monitoring-system/whizard-monitoring-agent-k-kubelet/1
honor_labels: true
honor_timestamps: true
track_timestamps_staleness: false
scrape_interval: 1m
scrape_timeout: 10s
scrape_protocols:
- OpenMetricsText1.0.0
- OpenMetricsText0.0.1
- PrometheusText0.0.4
metrics_path: /metrics/cadvisor
scheme: https
enable_compression: true
authorization:
type: Bearer
credentials_file: /var/run/secrets/kubernetes.io/serviceaccount/token
tls_config:
ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
insecure_skip_verify: true
follow_redirects: true
enable_http2: true
relabel_configs:
- source_labels: [job]
separator: ;
regex: (.*)
target_label: __tmp_prometheus_job_name
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_service_label_app_kubernetes_io_name, __meta_kubernetes_service_labelpresent_app_kubernetes_io_name]
separator: ;
regex: (kubelet);true
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_service_label_k8s_app, __meta_kubernetes_service_labelpresent_k8s_app]
separator: ;
regex: (kubelet);true
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_endpoint_port_name]
separator: ;
regex: https-metrics
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
separator: ;
regex: Node;(.*)
target_label: node
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
separator: ;
regex: Pod;(.*)
target_label: pod
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_namespace]
separator: ;
regex: (.*)
target_label: namespace
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_service_name]
separator: ;
regex: (.*)
target_label: service
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_name]
separator: ;
regex: (.*)
target_label: pod
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_container_name]
separator: ;
regex: (.*)
target_label: container
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_phase]
separator: ;
regex: (Failed|Succeeded)
replacement: $1
action: drop
- source_labels: [__meta_kubernetes_service_name]
separator: ;
regex: (.*)
target_label: job
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_service_label_k8s_app]
separator: ;
regex: (.+)
target_label: job
replacement: ${1}
action: replace
- separator: ;
regex: (.*)
target_label: endpoint
replacement: https-metrics
action: replace
- source_labels: [__metrics_path__]
separator: ;
regex: (.*)
target_label: metrics_path
replacement: $1
action: replace
- separator: ;
regex: (service|endpoint)
replacement: $1
action: labeldrop
- source_labels: [__address__]
separator: ;
regex: (.*)
modulus: 1
target_label: __tmp_hash
replacement: $1
action: hashmod
- source_labels: [__tmp_hash]
separator: ;
regex: "0"
replacement: $1
action: keep
metric_relabel_configs:
- source_labels: [__name__]
separator: ;
regex: container_cpu_(cfs_throttled_seconds_total|load_average_10s|system_seconds_total|user_seconds_total)
replacement: $1
action: drop
- source_labels: [__name__]
separator: ;
regex: container_fs_(io_current|io_time_seconds_total|io_time_weighted_seconds_total|reads_merged_total|sector_reads_total|sector_writes_total|writes_merged_total)
replacement: $1
action: drop
- source_labels: [__name__]
separator: ;
regex: container_memory_(mapped_file|swap)
replacement: $1
action: drop
- source_labels: [__name__]
separator: ;
regex: container_(file_descriptors|tasks_state|threads_max)
replacement: $1
action: drop
- source_labels: [__name__]
separator: ;
regex: container_spec.*
replacement: $1
action: keep
- source_labels: [id, pod]
separator: ;
regex: .+;
replacement: $1
action: drop
- source_labels: [__name__]
separator: ;
regex: container_cpu_cfs_.*periods_total|container_cpu_usage_seconds_total|container_fs_(limit|usage)_bytes|container_fs_(reads|writes)_bytes_total|container_fs_(reads|writes)_total|container_memory_(cache|mapped_file|rss|usage_bytes|working_set_bytes)|container_network_(receive|transmit)_(bytes|packets|packets_dropped)_total|container_processes.*|container_threads.*
replacement: $1
action: keep
kubernetes_sd_configs:
- role: endpoints
kubeconfig_file: ""
follow_redirects: true
enable_http2: true
namespaces:
own_namespace: false
names:
- kube-system
- job_name: serviceMonitor/kubesphere-monitoring-system/whizard-monitoring-agent-k-kubelet/2
honor_labels: true
honor_timestamps: true
track_timestamps_staleness: false
scrape_interval: 1m
scrape_timeout: 10s
scrape_protocols:
- OpenMetricsText1.0.0
- OpenMetricsText0.0.1
- PrometheusText0.0.4
metrics_path: /metrics/probes
scheme: https
enable_compression: true
authorization:
type: Bearer
credentials_file: /var/run/secrets/kubernetes.io/serviceaccount/token
tls_config:
ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
insecure_skip_verify: true
follow_redirects: true
enable_http2: true
relabel_configs:
- source_labels: [job]
separator: ;
regex: (.*)
target_label: __tmp_prometheus_job_name
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_service_label_app_kubernetes_io_name, __meta_kubernetes_service_labelpresent_app_kubernetes_io_name]
separator: ;
regex: (kubelet);true
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_service_label_k8s_app, __meta_kubernetes_service_labelpresent_k8s_app]
separator: ;
regex: (kubelet);true
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_endpoint_port_name]
separator: ;
regex: https-metrics
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
separator: ;
regex: Node;(.*)
target_label: node
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
separator: ;
regex: Pod;(.*)
target_label: pod
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_namespace]
separator: ;
regex: (.*)
target_label: namespace
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_service_name]
separator: ;
regex: (.*)
target_label: service
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_name]
separator: ;
regex: (.*)
target_label: pod
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_container_name]
separator: ;
regex: (.*)
target_label: container
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_phase]
separator: ;
regex: (Failed|Succeeded)
replacement: $1
action: drop
- source_labels: [__meta_kubernetes_service_name]
separator: ;
regex: (.*)
target_label: job
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_service_label_k8s_app]
separator: ;
regex: (.+)
target_label: job
replacement: ${1}
action: replace
- separator: ;
regex: (.*)
target_label: endpoint
replacement: https-metrics
action: replace
- source_labels: [__metrics_path__]
separator: ;
regex: (.*)
target_label: metrics_path
replacement: $1
action: replace
- source_labels: [__address__]
separator: ;
regex: (.*)
modulus: 1
target_label: __tmp_hash
replacement: $1
action: hashmod
- source_labels: [__tmp_hash]
separator: ;
regex: "0"
replacement: $1
action: keep
kubernetes_sd_configs:
- role: endpoints
kubeconfig_file: ""
follow_redirects: true
enable_http2: true
namespaces:
own_namespace: false
names:
- kube-system
- job_name: serviceMonitor/kubesphere-monitoring-system/whizard-monitoring-agent-k-prometheus/0
honor_timestamps: true
track_timestamps_staleness: false
scrape_interval: 1m
scrape_timeout: 10s
scrape_protocols:
- OpenMetricsText1.0.0
- OpenMetricsText0.0.1
- PrometheusText0.0.4
metrics_path: /metrics
scheme: http
enable_compression: true
follow_redirects: true
enable_http2: true
relabel_configs:
- source_labels: [job]
separator: ;
regex: (.*)
target_label: __tmp_prometheus_job_name
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_service_label_app, __meta_kubernetes_service_labelpresent_app]
separator: ;
regex: (kube-prometheus-stack-prometheus);true
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_service_label_release, __meta_kubernetes_service_labelpresent_release]
separator: ;
regex: (whizard-monitoring-agent);true
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_service_label_self_monitor, __meta_kubernetes_service_labelpresent_self_monitor]
separator: ;
regex: (true);true
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_endpoint_port_name]
separator: ;
regex: web
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
separator: ;
regex: Node;(.*)
target_label: node
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
separator: ;
regex: Pod;(.*)
target_label: pod
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_namespace]
separator: ;
regex: (.*)
target_label: namespace
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_service_name]
separator: ;
regex: (.*)
target_label: service
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_name]
separator: ;
regex: (.*)
target_label: pod
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_container_name]
separator: ;
regex: (.*)
target_label: container
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_phase]
separator: ;
regex: (Failed|Succeeded)
replacement: $1
action: drop
- source_labels: [__meta_kubernetes_service_name]
separator: ;
regex: (.*)
target_label: job
replacement: ${1}
action: replace
- separator: ;
regex: (.*)
target_label: endpoint
replacement: web
action: replace
- source_labels: [__address__]
separator: ;
regex: (.*)
modulus: 1
target_label: __tmp_hash
replacement: $1
action: hashmod
- source_labels: [__tmp_hash]
separator: ;
regex: "0"
replacement: $1
action: keep
kubernetes_sd_configs:
- role: endpoints
kubeconfig_file: ""
follow_redirects: true
enable_http2: true
namespaces:
own_namespace: false
names:
- kubesphere-monitoring-system
- job_name: serviceMonitor/kubesphere-monitoring-system/whizard-monitoring-agent-k-prometheus/1
honor_timestamps: true
track_timestamps_staleness: false
scrape_interval: 1m
scrape_timeout: 10s
scrape_protocols:
- OpenMetricsText1.0.0
- OpenMetricsText0.0.1
- PrometheusText0.0.4
metrics_path: /metrics
scheme: http
enable_compression: true
follow_redirects: true
enable_http2: true
relabel_configs:
- source_labels: [job]
separator: ;
regex: (.*)
target_label: __tmp_prometheus_job_name
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_service_label_app, __meta_kubernetes_service_labelpresent_app]
separator: ;
regex: (kube-prometheus-stack-prometheus);true
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_service_label_release, __meta_kubernetes_service_labelpresent_release]
separator: ;
regex: (whizard-monitoring-agent);true
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_service_label_self_monitor, __meta_kubernetes_service_labelpresent_self_monitor]
separator: ;
regex: (true);true
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_endpoint_port_name]
separator: ;
regex: reloader-web
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
separator: ;
regex: Node;(.*)
target_label: node
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
separator: ;
regex: Pod;(.*)
target_label: pod
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_namespace]
separator: ;
regex: (.*)
target_label: namespace
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_service_name]
separator: ;
regex: (.*)
target_label: service
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_name]
separator: ;
regex: (.*)
target_label: pod
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_container_name]
separator: ;
regex: (.*)
target_label: container
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_phase]
separator: ;
regex: (Failed|Succeeded)
replacement: $1
action: drop
- source_labels: [__meta_kubernetes_service_name]
separator: ;
regex: (.*)
target_label: job
replacement: ${1}
action: replace
- separator: ;
regex: (.*)
target_label: endpoint
replacement: reloader-web
action: replace
- source_labels: [__address__]
separator: ;
regex: (.*)
modulus: 1
target_label: __tmp_hash
replacement: $1
action: hashmod
- source_labels: [__tmp_hash]
separator: ;
regex: "0"
replacement: $1
action: keep
kubernetes_sd_configs:
- role: endpoints
kubeconfig_file: ""
follow_redirects: true
enable_http2: true
namespaces:
own_namespace: false
names:
- kubesphere-monitoring-system
- job_name: serviceMonitor/kubesphere-monitoring-system/whizard-notification-alertmanager/0
honor_timestamps: true
track_timestamps_staleness: false
scrape_interval: 1m
scrape_timeout: 10s
scrape_protocols:
- OpenMetricsText1.0.0
- OpenMetricsText0.0.1
- PrometheusText0.0.4
metrics_path: /metrics
scheme: http
enable_compression: true
follow_redirects: true
enable_http2: true
relabel_configs:
- source_labels: [job]
separator: ;
regex: (.*)
target_label: __tmp_prometheus_job_name
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_service_label_app_kubernetes_io_instance, __meta_kubernetes_service_labelpresent_app_kubernetes_io_instance]
separator: ;
regex: (whizard-notification);true
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_service_label_app_kubernetes_io_name, __meta_kubernetes_service_labelpresent_app_kubernetes_io_name]
separator: ;
regex: (alertmanager);true
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_endpoint_port_name]
separator: ;
regex: http
replacement: $1
action: keep
- source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
separator: ;
regex: Node;(.*)
target_label: node
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_endpoint_address_target_kind, __meta_kubernetes_endpoint_address_target_name]
separator: ;
regex: Pod;(.*)
target_label: pod
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_namespace]
separator: ;
regex: (.*)
target_label: namespace
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_service_name]
separator: ;
regex: (.*)
target_label: service
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_name]
separator: ;
regex: (.*)
target_label: pod
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_container_name]
separator: ;
regex: (.*)
target_label: container
replacement: $1
action: replace
- source_labels: [__meta_kubernetes_pod_phase]
separator: ;
regex: (Failed|Succeeded)
replacement: $1
action: drop
- source_labels: [__meta_kubernetes_service_name]
separator: ;
regex: (.*)
target_label: job
replacement: ${1}
action: replace
- source_labels: [__meta_kubernetes_service_label_app_kubernetes_io_name]
separator: ;
regex: (.+)
target_label: job
replacement: ${1}
action: replace
- separator: ;
regex: (.*)
target_label: endpoint
replacement: http
action: replace
- source_labels: [service]
separator: ;
regex: ^whizard-notification-alertmanager-headless$
replacement: $1
action: keep
- source_labels: [__address__]
separator: ;
regex: (.*)
modulus: 1
target_label: __tmp_hash
replacement: $1
action: hashmod
- source_labels: [__tmp_hash]
separator: ;
regex: "0"
replacement: $1
action: keep
kubernetes_sd_configs:
- role: endpoints
kubeconfig_file: ""
follow_redirects: true
enable_http2: true
namespaces:
own_namespace: false
names:
- kubesphere-monitoring-system
storage:
tsdb:
outofordertimewindow: 0
remote_write:
- url: http://vmauth.monitor.svc:8427/insert/0/prometheus/
remote_timeout: 30s
write_relabel_configs:
- separator: ;
regex: (.*)
target_label: busigroup
replacement: base
action: replace
basic_auth:
username: admin
password: <secret>
follow_redirects: true
enable_http2: true
queue_config:
capacity: 10000
max_shards: 50
min_shards: 1
max_samples_per_send: 2000
batch_send_deadline: 5s
min_backoff: 30ms
max_backoff: 5s
metadata_config:
send: true
send_interval: 1m
max_samples_per_send: 2000
# kubectl -n kubesphere-monitoring-system get po
NAME READY STATUS RESTARTS AGE
alertmanager-proxy-59db4bdd97-6gsnk 1/1 Running 0 13h
helm-install-whizard-notification-dx6xfd-h4qjh 0/1 Completed 0 13h
helm-upgrade-whizard-monitoring-agent-5659hd-2kxbl 0/1 Completed 0 4h55m
helm-upgrade-whizard-monitoring-agent-d9rrz2-sblw2 0/1 Completed 0 4h55m
helm-upgrade-whizard-monitoring-agent-f4zl7t-v9r5h 0/1 Completed 0 4h55m
helm-upgrade-whizard-monitoring-agent-qxrpvs-2grqx 0/1 Completed 0 4h55m
helm-upgrade-whizard-monitoring-agent-swtth8-vgfcl 0/1 Completed 0 4h55m
helm-upgrade-whizard-monitoring-jc6jmz-szx4k 0/1 Completed 0 4h55m
kube-state-metrics-549c77f747-74vrm 3/3 Running 0 13h
node-exporter-65f2s 4/4 Running 0 13h
node-exporter-7s5jz 4/4 Running 0 13h
node-exporter-gr9rz 4/4 Running 0 13h
node-exporter-j4f8f 4/4 Running 0 13h
node-exporter-mgpgc 4/4 Running 0 13h
node-exporter-qflch 4/4 Running 0 13h
node-exporter-rk2q7 4/4 Running 0 13h
node-exporter-sqrct 4/4 Running 0 13h
node-exporter-vgpvf 4/4 Running 0 13h
notification-manager-deployment-6fd99dc65f-tkxnq 2/2 Running 0 13h
notification-manager-operator-cd64797d6-8sndb 2/2 Running 1 (127m ago) 13h
prometheus-k8s-0 2/2 Running 0 4h54m
prometheus-operator-84b9db7b96-2fp8v 1/1 Running 0 13h
whizard-notification-alertmanager-0 2/2 Running 0 13h
whizard-notification-alertmanager-1 2/2 Running 0 13h
whizard-notification-alertmanager-2 2/2 Running 0 13h
聚合规则中也没有找到相关指标的定义
